Overview

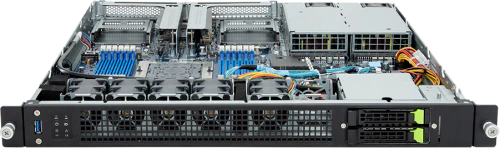

Gigabyte SV E163-Z34-ACH1 1U UP EPYC9005 9004 2x2.5 Gen5 NVMe SATA



Specifications

Model Number:  E163-Z34-ACH1

Brand:  Gigabyte

Alt Part Number(s):  E163-Z34-ACH1

Product Type:  Server



Technical Description

Brand:  Gigabyte

Model:  E163-Z34-ACH1

Form Factor: 1U rack-mount chassis

Processor: Single AMD EPYC 9004/9005 Series processor, supporting CPU cTDP up to 400W (up to 500W at 25°C ambient)

Memory: 12 DDR5 DIMM sockets with 12-channel memory architecture, supporting up to 1.5TB or 3TB DDR5 ECC Registered memory depending on configuration; memory speeds up to 6000 MT/s for EPYC 9005 series

Storage: 2x 2.5" Gen5 NVMe hot-swap drive bays at the front, plus 1x internal M.2 slot (PCIe Gen3 x4)

Expansion Slots: 2x PCIe 5.0 x16 slots (FHHL), plus 2x OCP 3.0 PCIe Gen5 x16 slots

Networking: 1x 1GbE LAN port (Intel I210-AT), 1x 10/100/1000 management LAN port

Power Supply: 1+1 redundant 1300W power supplies, 80 PLUS Titanium certified

Cooling: Multiple high-speed fans (e.g., 2x 40x40x28mm at 25,000rpm and 4x 40x40x56mm at 38,000rpm)

Boost your enterprise performance with the Gigabyte SV E163-Z34-ACH1 1U UP EPYC9005 9004 2x2.5 Gen5 NVMe SATA - ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
