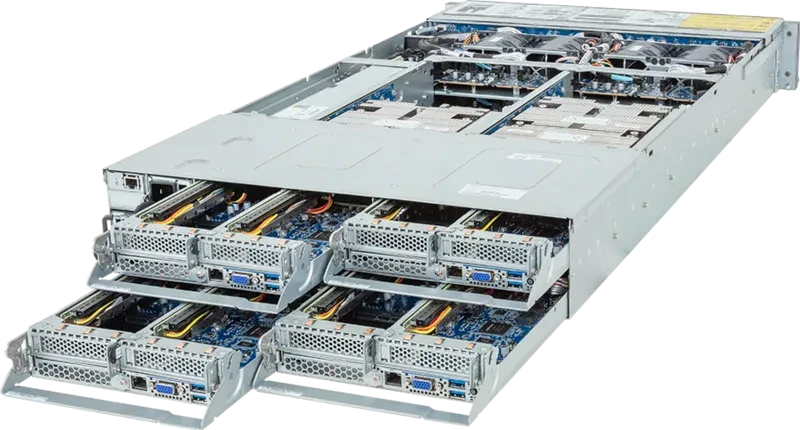

Gigabyte H263-V60-AAW1 NVIDIA Grace CPU Superchip 2U 4-Node 16-Bay Gen5 NVMe Rack-Mountable Server



Specifications

Model Number:  H263-V60-AAW1

Brand:  Gigabyte

Alt Part Number(s):  H263-V60-AAW1

Product Type:  Server



Technical Description

Brand:  Gigabyte

Model:  H263-V60-AAW1

Form Factor: Rack-Mountable, GPU Server

Chassis Type: 2U 4-Node - Rear Access

Processor Type: NVIDIA Grace™ CPU Superchip

Memory Capacity: Up to 960GB LPDDR5X ECC memory per module

Memory Type: LPDDR5X with ECC

Storage Type: 2.5" Gen5 NVMe and M.2 PCIe Gen5

Memory Bandwidth: Up to 1 TB/s per node

Storage Bays: 16 x 2.5" Gen5 NVMe (hot-swap)

Internal Storage: 8 x M.2 PCIe Gen5 x4

PCIe Expansion Slots: 8 x LP Gen5 x16 + 4 x OCP NIC 3.0 Gen5 x16

LAN Ports: 4 x 10/100/1000 Mbps Management LAN

CMC LAN: 1 x CMC Management LAN port

Video Controller: Integrated ASPEED® AST2600 (x4)

VGA Ports: 4 x VGA ports

USB Ports: 8 x USB 3.2 Gen1 (Type-A)

Power Supply: 2+1 3000W 80 PLUS Titanium (redundant)

Power Input: 100-240V AC / 240V DC (China)

TPM Header: 1 x SPI interface (TPM2.0 optional)

Backplane Interface: PCIe Gen5 x4

System Fans: 4 x 80x80x80mm (16,500 rpm)

System Management: ASPEED® AST2600 BMC + AST2520 CMC

Remote Management: GIGABYTE Management Console (HTML5 KVM, BIOS/BMC updates)

Monitoring: Voltage, Temp, RPM, CPU Status, FRU, SEL, Fan Profiles

Security Features: LDAP / AD / RADIUS, Firewall, PAM, SSL

Event Logging: SEL Log with linear or circular storage

Power Management: Power monitoring, control, and capping

Operating Temperature: 10°C to 30°C

Operating Humidity: 10% to 80% (non-condensing)
