Overview

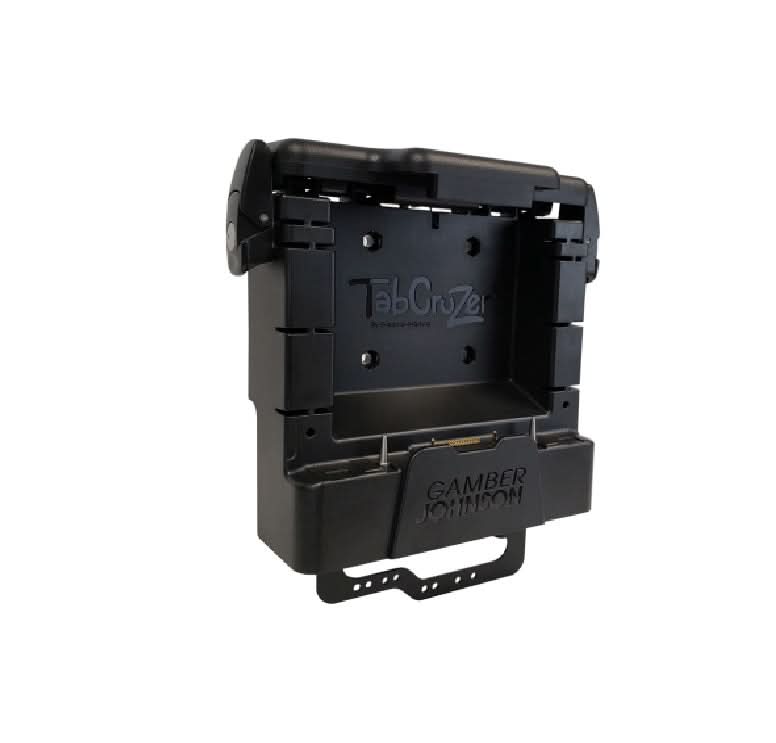

The 7170-0523 is a rugged vehicle docking station kit manufactured by Gamber-Johnson, designed specifically for the 8-inch versions of the Zebra ET50, ET51, ET55, and ET56 enterprise tablets. Includes a LIND 20-60 VDC isolated power adapter, typically used for material handling vehicles like forklifts with higher voltage systems.



Specifications

Model Number:  7170-0523

Brand:  Gamber Johnson

Alt Part Number(s):  7170-0523

Product Type:  Docking Station

Technical Description

Brand:  Gamber Johnson

Model Number:  7170-0523

Series:  Zebra ET50/51/55/56

Total Number of USB Ports:  3

USB-A:  3 × USB 3.0 (Type-A) full-speed ports

HDMI:  1 × HDMI output (full-size)

Ethernet:  1 × RJ-45 network port

RS232:  Powered RS-232 serial on pin 9 (1 A)

Tablet Size:  8"

Device Supported:  Tablet PC

Ethernet Technology:  Ethernet

Connectivity Technology:  Docking

Mounting Pattern:  VESA 75 × 75 mm pattern

Power Input:  20–60 VDC

Power Input:  19.5 V DC

Height:  10.0”

Width:  9.0”

Depth:  3.35”
