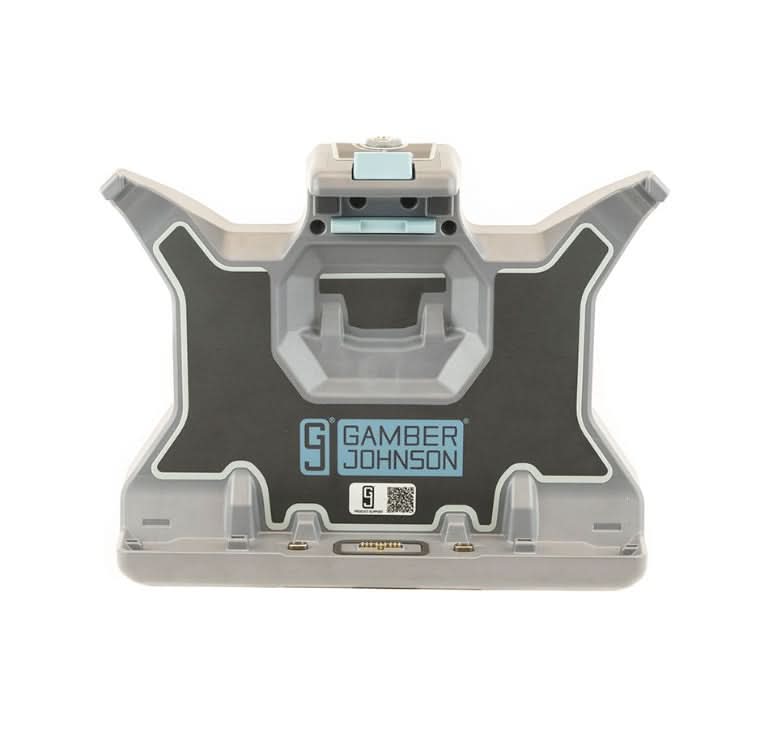

Gamber Johnson 7160-1772-10 Dell Latitude 7230 Rugged Extreme Docking Station
Overview
The Gamber-Johnson 7160-1772-10 is a rugged vehicle docking station designed for the Dell Latitude 7230 Rugged Extreme 12-inch tablet. It is a "Full Port" model that differs from the 7160-1772-14 primarily by having NO RF antenna pass-through.
Specifications
Model Number: 7160-1772-10
Brand: Gamber Johnson
Alt Part Number(s): 7160-1772-10
Product Type: Docking Station
Technical Description
Brand: Gamber Johnson
Model Number: 7160-1772-10
Total Number of USB Ports: 3
USB-A: 2 × Fully powered USB‑A (9‑pin, 1.5 A each)
USB-C: 1 × Fully powered USB‑C (1.5 A)
Network: (1) RJ-45 Ethernet port
Tablet Size: 12"
Device Supported: Tablet PC
Ethernet Technology: Ethernet
Connectivity Technology: Docking
Compatibility: Dell Latitude 7230 Rugged Extreme
Mounting Pattern: VESA 75 with 1/4‑20 studs
Power Source Type: Power Adapter
Power Input: 19.5 V DC
Height: 10.5”
Width: 12.14”
Depth: 3.18”
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
