Overview

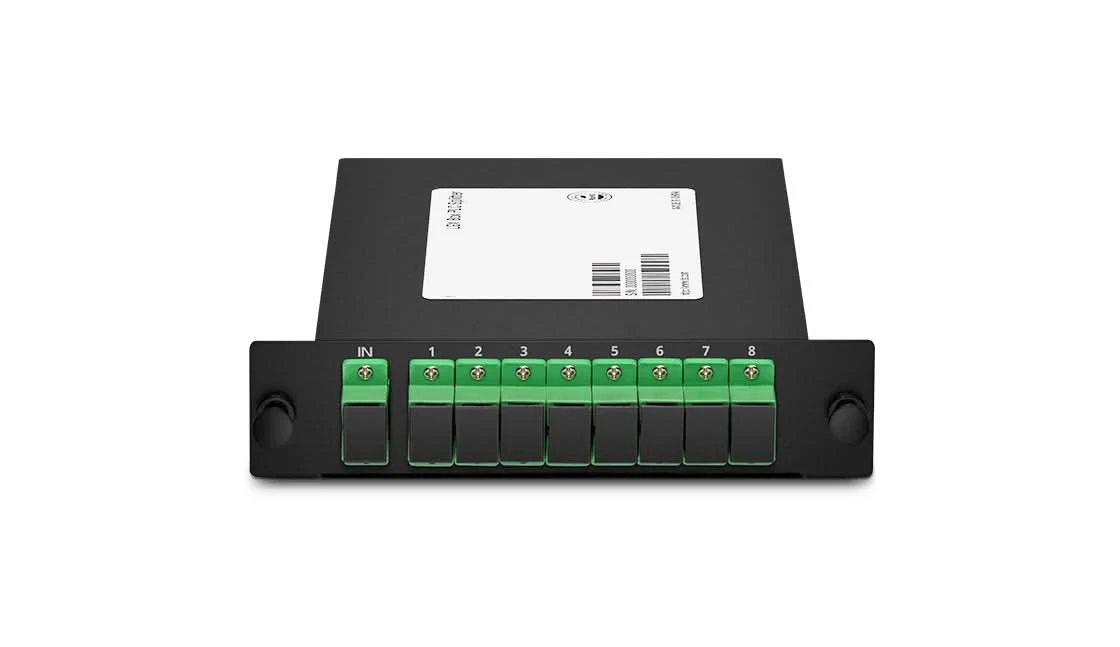

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into eight output signals, and is available with SC/APC connector. These highly stable components perform superbly across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss in 8-port configurations



Specifications

Model Number:  FLG-PLC1x8LGX1SCA

Brand:  FS

Alt Part Number(s):  FLG-PLC1x8LGX1SCA

Product Type:  Fiber Splitter



Technical Description

Brand:  FS

Model Number:  FLG-PLC1x8LGX1SCA

Operating Wavelength:  1260~1650nm

Connector Type:  SC/APC

Fiber Mode:  Single-mode

Split Ratio:  Symmetrical

Insertion Loss:  ≤ 10.5dB

Insertion Loss Uniformit:  ≤ 0.8dB

Wavelength Dependent Loss:  ≤ 0.3dB

Return Loss:  ≥ 55dB

Directivity:  ≥ 55dB

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number
