Overview

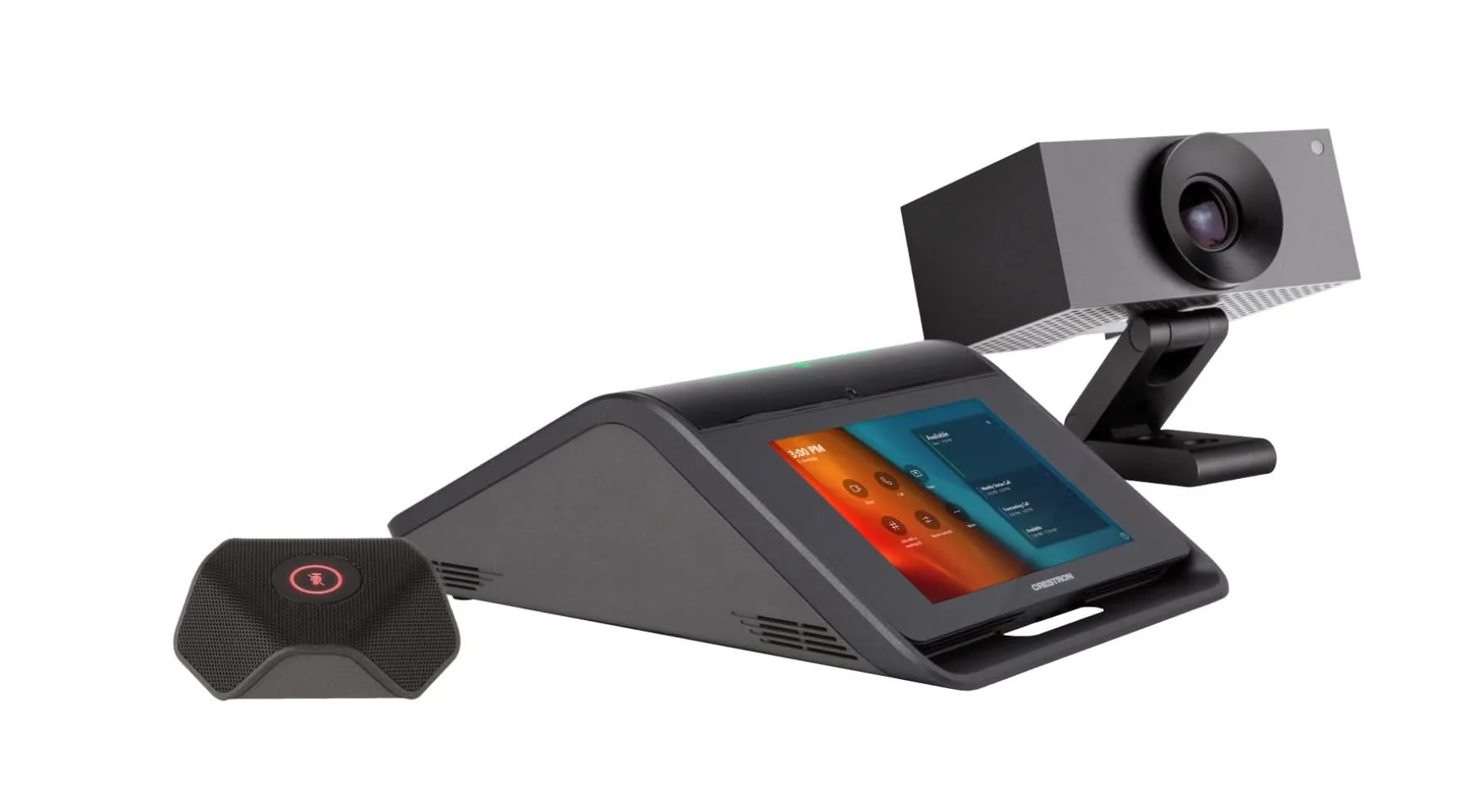

The Crestron Flex UC-MX70-T KIT provides a complete tabletop video conferencing solution for large rooms using native Microsoft Teams Rooms software. This kit includes a high-definition AI collaboration camera and an extension microphone pod for expanded audio.



Specifications

Model Number:  UC-MX70-T KIT

Brand:  Crestron

Alt Part Number(s):  UC-MX70-T KIT

Product Type:  Video Conference System



Specifications

Brand:  Crestron

Model:  UC-MX70-T KIT

Display Diagonal Size:  7"

Native Resolution:  1280 x 800

Monitor Features:  Touch Screen

Technology:  TFT active matrix

Image Sensor:  20.30 Megapixels 1 in. CMOS Sensor

Resolution/FPS:  HD 1080p @ 30 fps

Lens:  High precision, wide angle, aspherical glass lens

Field of View:  103º diagonal, 92º horizontal, 65º vertical

Autozoom:  Genius Framing automatic lossless digital zoom intelligently frames around

Connectivity:  USB 3.0 port (via USB to PoE Adapter)4

Power:  5VDC power adapter

Communications:  A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to

Microphone:  Triple mic array with (3) cardioid electret elements

Pickup Range:  20 ft (6 m) typical, 360°

Mic Mute:  Capacitive button with bi-color LED, toggles between mute and unmute

Connectors:  RJ9 4P4C connector, female

Power:  Powered via the CCS-UC-1-X through the A2B bus
