Overview

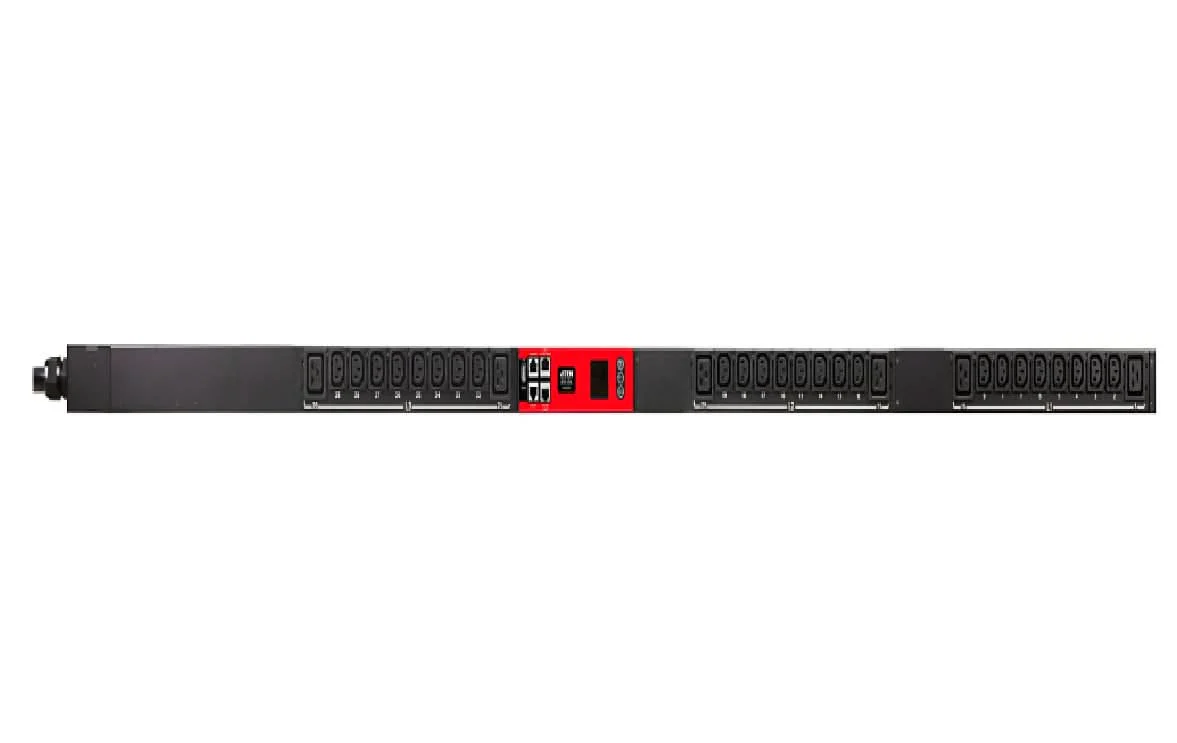

The ATEN PG98230B2 is a 20A, 3-Phase Intelligent eco PDU (Power Distribution Unit) designed for high-density IT environments such as server rooms and data centers. It features a metered-by-outlet and switched configuration, allowing for granular control and energy monitoring for each individual connected device.



Specifications

Model Number:  PG98230B2

Brand:  Aten

Alt Part Number(s):   PG98230B2

Product Type:  Power Distribution Unit

Technical Description

Brand:  Aten

Model Number:  PG98230B2

Phase:  3-Phase

Plug / Connector Detail:  NEMA L15-20P

Input Current:  20 A

Input Voltage:  208 V AC

Input Connectors:  208V

Input Frequency:  50–60 Hz

Output Connector Type:  6 × IEC 60320 C1, 24 × IEC 60320 C13

Number of Outlets:  30-Outlet

Power Rating (Watt):  7205 VA

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  179.0"

Width:  5.60"

Depth:  6.80"
