Overview

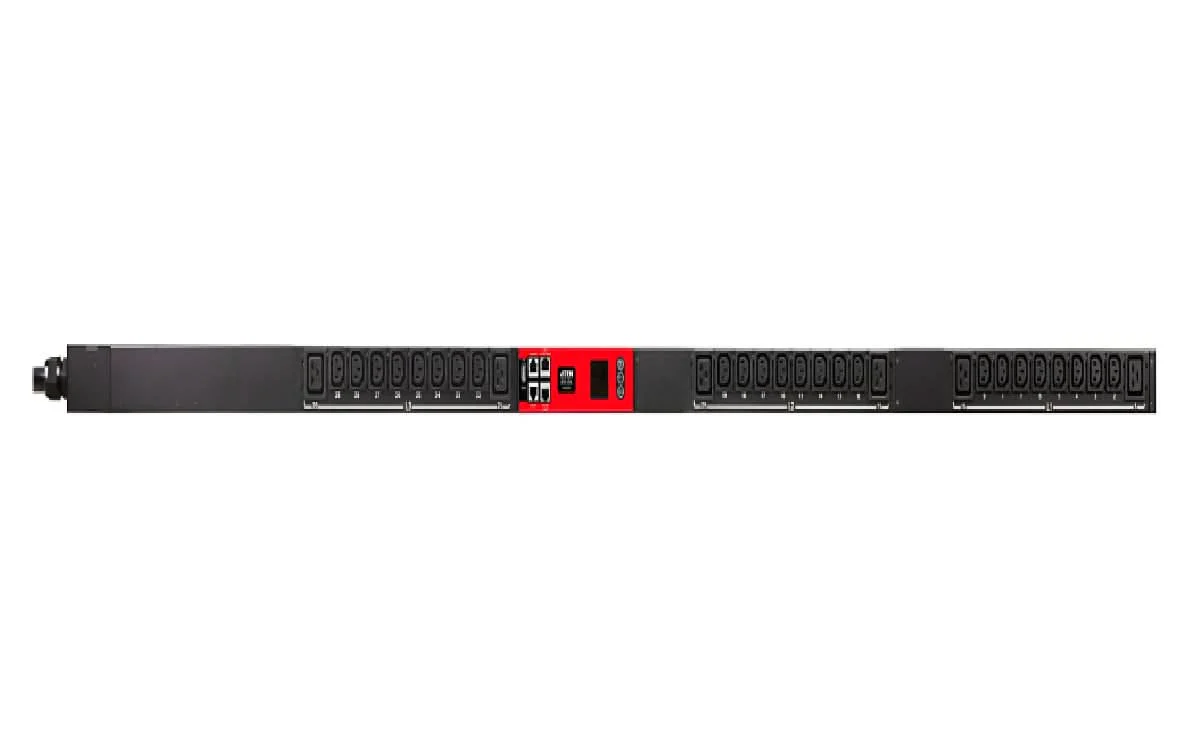

The product number PG95230B2 is an ATEN eco PDU (Power Distribution Unit), a 3-Phase metered device designed for power management and monitoring in high-density server environments and data centers. It features 30 outlets and several advanced monitoring and management capabilities.



Specifications

Model Number:  PG95230B2

Brand:  Aten

Alt Part Number(s):  PG95230B2

Product Type:  Power Distribution Unit

Technical Description

Brand:  Aten

Model Number:  PG95230B2

Phase:  3-Phase

Plug / Connector Detail:  NEMA L15-20P

Input Current:  20 A

Input Voltage:  208 V AC

Input Connectors:  208V

Input Frequency:  50–60 Hz

Output Connector Type:  6 × IEC 60320 C1, 24 × IEC 60320 C13

Output Voltage:  208 V AC

Number of Outlets:  30-Outlet

Cord Length:  9.8 ft

Power Rating (Watt):  7205 VA

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  70.47"

Width:  2.20"

Depth:  2.68"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
