Overview

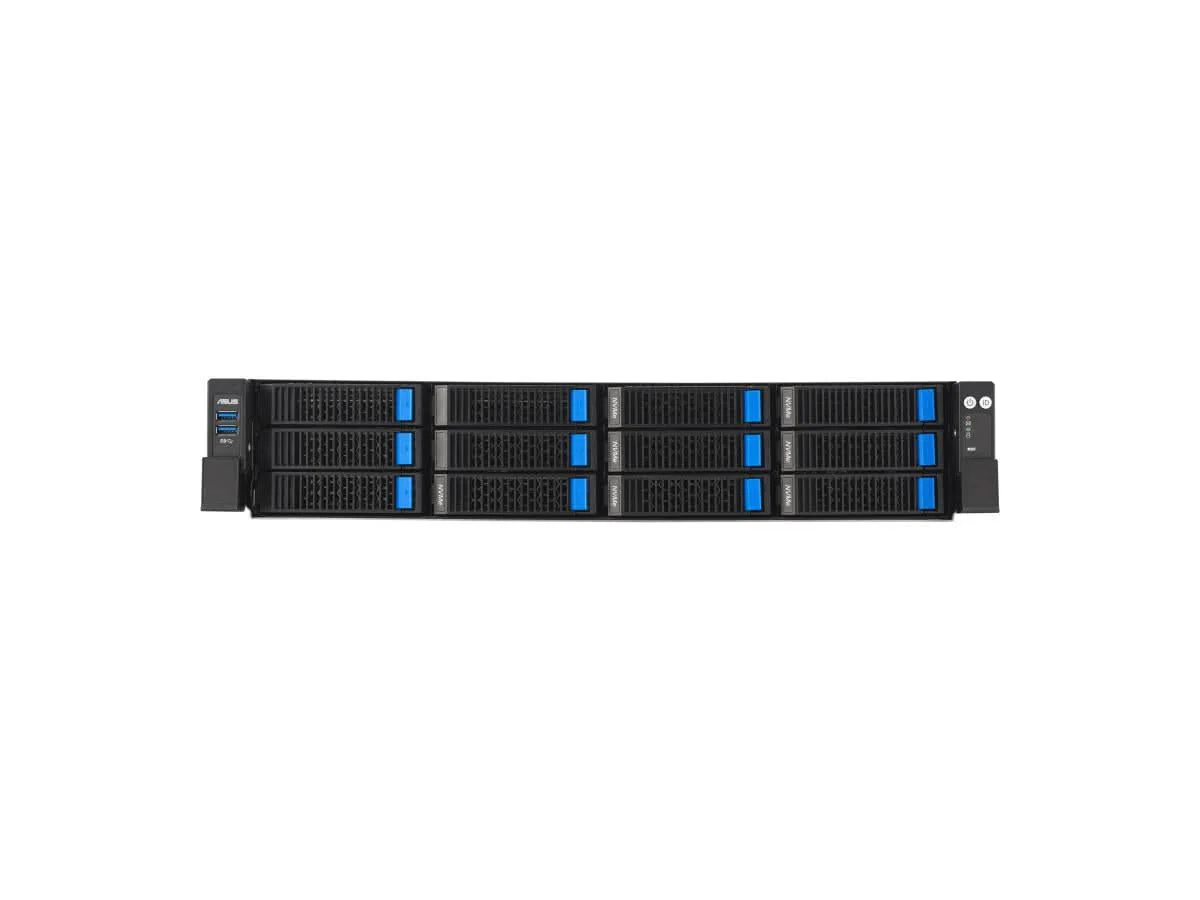

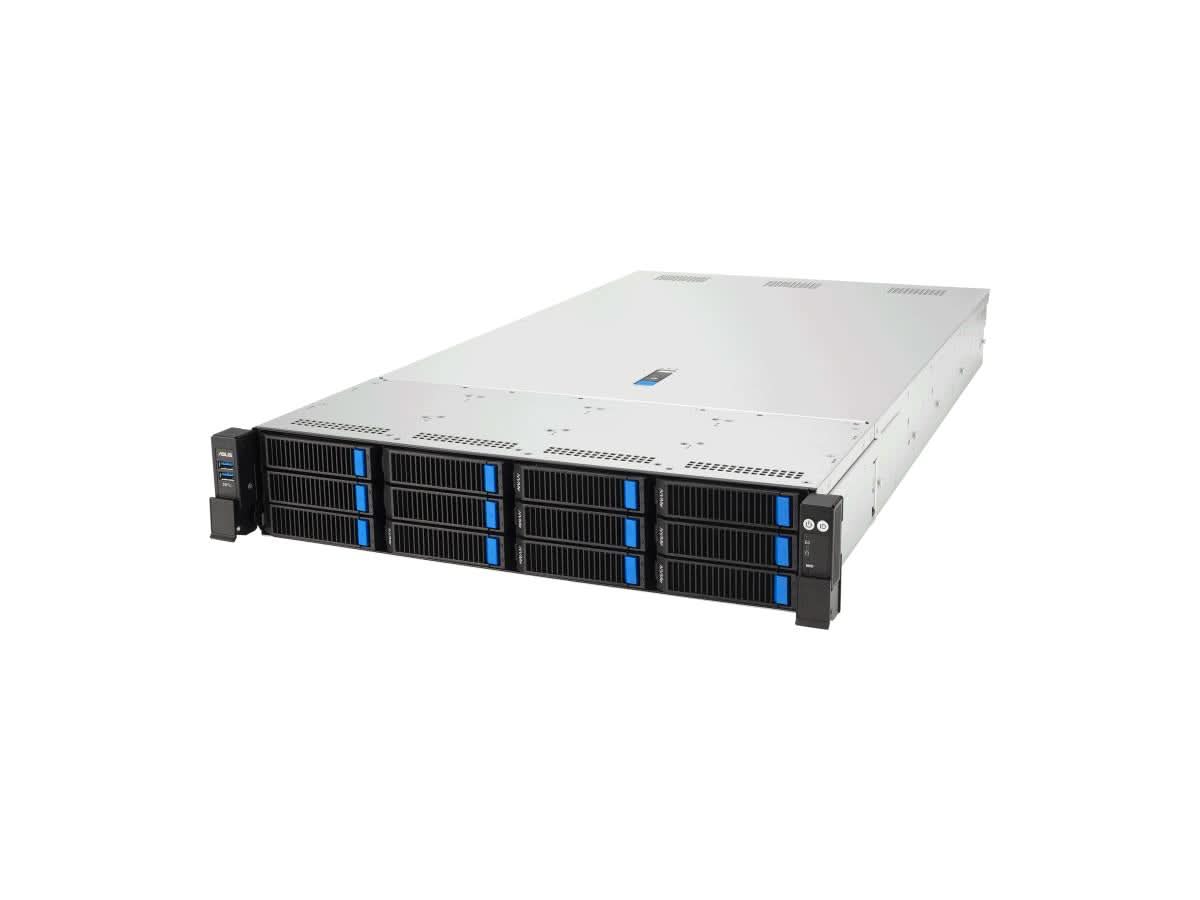

ASUS RS720A-E13-RS12U-27KW10G from the RS720A GPU server series features dual AMD EPYC 9005 processors with 24 DDR5 DIMM slots supporting up to 3 TB memory. It includes 12 NVMe/Pcie storage bays, 10 PCIe Gen5 expansion slots, 2700 W redundant power supplies, and advanced cooling for high-performance 2U rack deployments.



Specifications

Model Number:  RS720A-E13-RS12U-27KW10G

Brand:   ASUS

Alt Part Number(s):    RS720A-E13-RS12U-27KW10G

Product Type:  Server



Technical Description

Brand:  ASUS

Model:  RS720A-E13-RS12U-27KW10G

Form Factor: 2U Rackmount, GPU Servers

Processor / Type: EPYC 9005 series

Processor / Manufacturer: AMD

RAM / Technology: DDR5

RAM Form Factor: DIMM

RAM / Total Slots Qty: 24

RAM / Max Supported Size: 3072 GB

Hard Drive / Interface Type: PCI Express; NVMe

Hard Drive / Bays Qty: 12

Power / Device Type: Power Supply

Power / Redundant Capable: Yes

Power / Redundant Scheme: 1+1

Power / Provided (W): 2700 Watt

Power / Voltage Required: 100-120V~/220-240V, 50-60Hz

80 PLUS Certification: 80 PLUS Titanium

Interfaces & Connections: 1 × Management Port, 2 × USB 3.2 Gen1 ports (Front), 2 × USB 3.2 Gen1 ports (Rear), 1 × Mini-DP port (Rear), 1 × RJ-45 Management LAN port (Rear), 1 × Debug port (Rear)

Expansion Slots Total (Free): Total 10 expansion slots: 6 × PCIe Gen5 x8 or 3 × PCIe Gen5 x16 (FHFL), 2 × PCIe Gen5 x16 (FHHL), 2 × OCP3.0 Gen5 x16 (SFF)

Features: High-performance processing; Modular and scalable architecture; Advanced cooling solution

Min Operating Temperature: 10°C

Max Operating Temperature: 35°C



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
