Overview

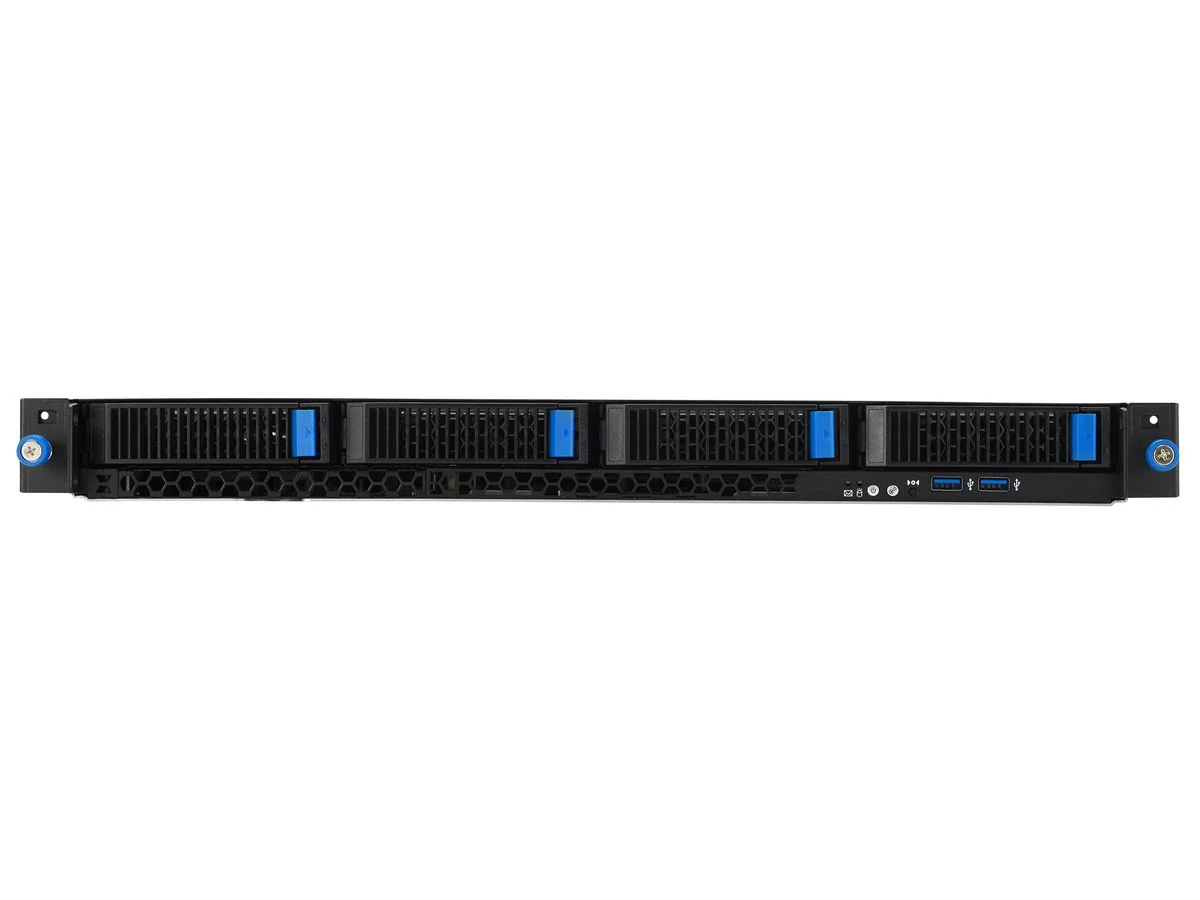

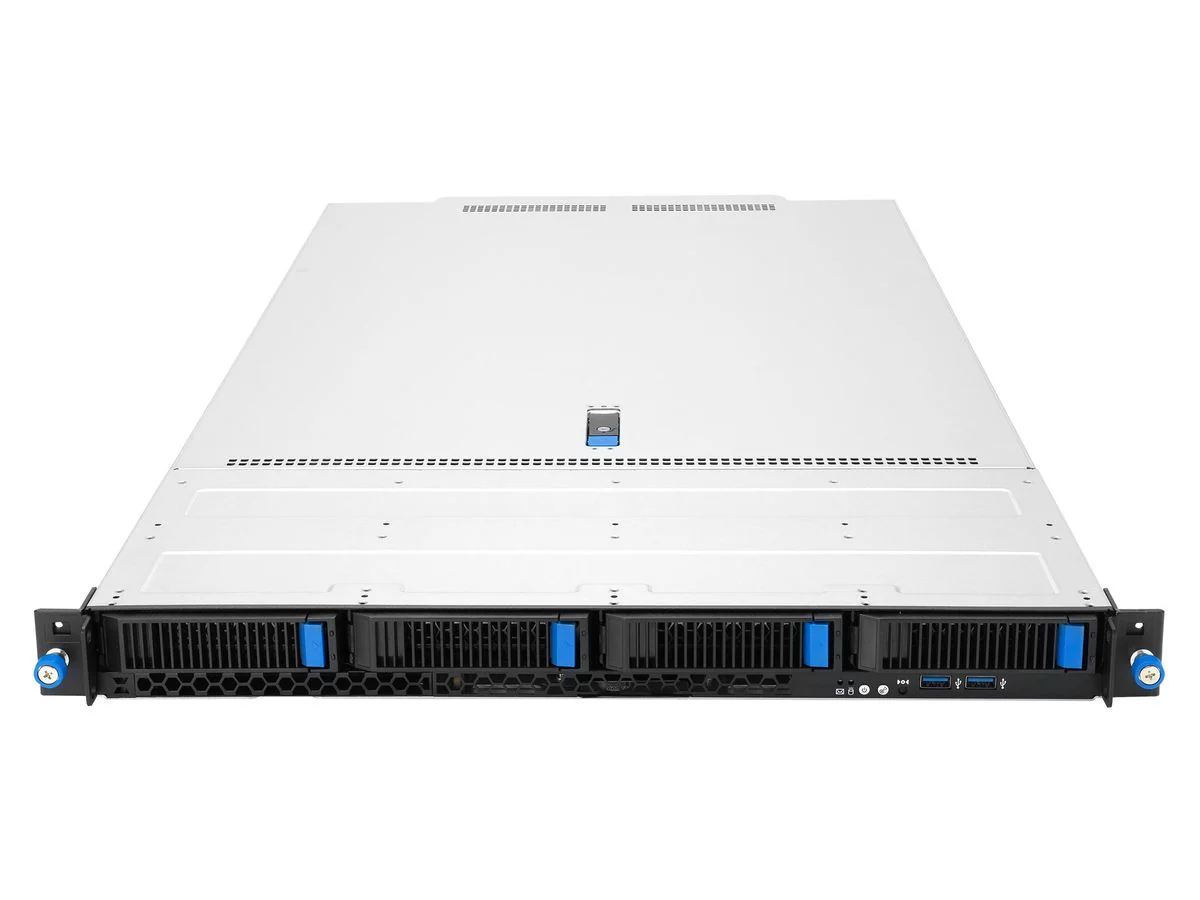

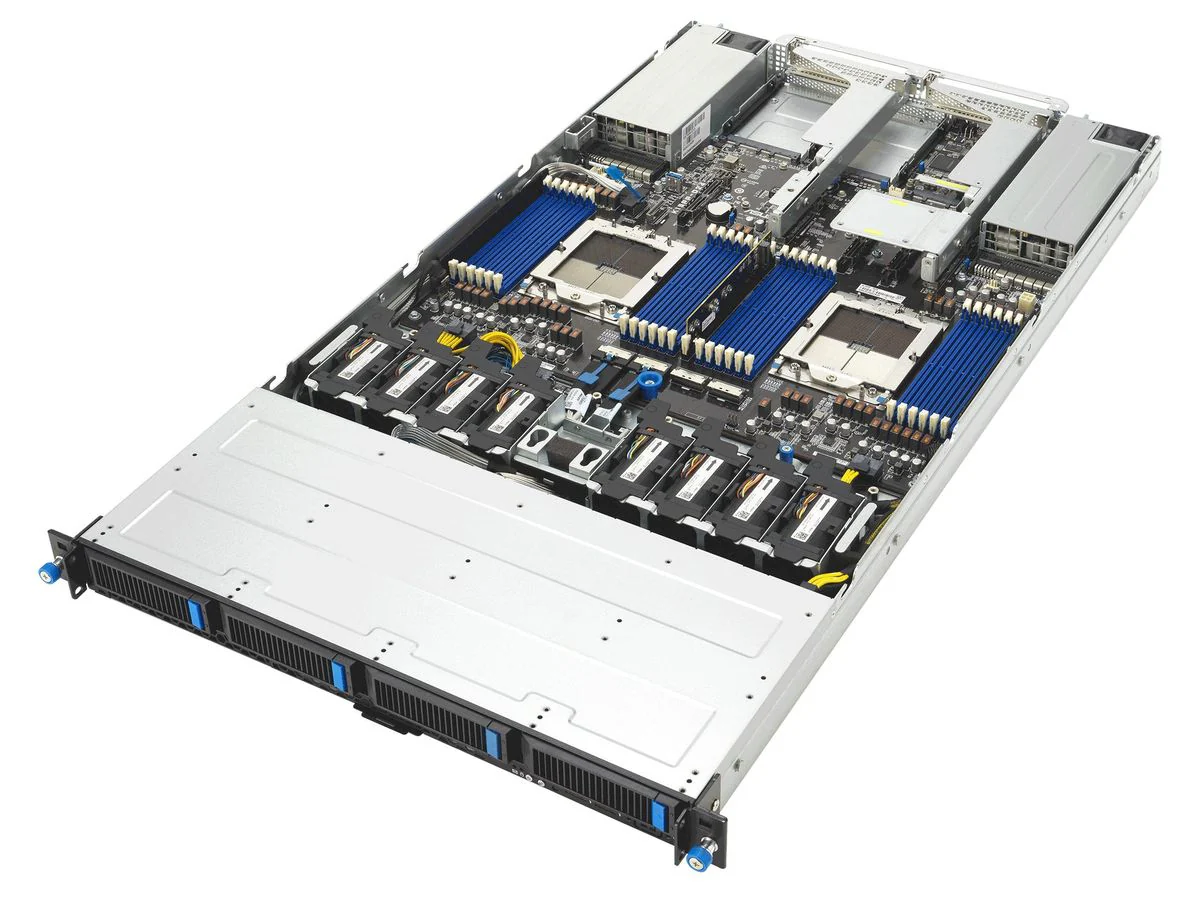

ASUS RS700A-E13-RS4U-2KW10G from the 1U server series features dual AMD EPYC 9005 processors with 24 DDR5 DIMM slots supporting up to 3 TB memory. It includes 4 hot-swap NVMe/SATA/SAS bays, 2 PCIe Gen5 x16 slots, and a 2000 W power supply for high-performance compute and storage workloads.



Specifications

Model Number: RS700A-E13-RS4U-2KW10G

Brand:   ASUS

Alt Part Number(s):   RS700A-E13-RS4U-2KW10G

Product Type:  Server



Technical Description

Brand:  ASUS

Model: RS700A-E13-RS4U-2KW10G

Form Factor: 1U Rackmount, GPU Server

Processor Type: EPYC 9005 series

Processor Manufacturer: AMD

Maximum Number of Processors Supported: 2

RAM Technology: DDR5

Total RAM Slots: 24

Maximum RAM Supported: 3 TB

Hard Drive Size: 3.5"

Number of Hard Drive Bays: 4

Data Link Protocol: Ethernet

Power Device Type: Power Supply

Power Provided: 2000 Watt

Power Voltage Required: 100-127V~/220-240V~

Interfaces & Connections: Front I/O Ports 2 x USB 3.2 Gen1; Rear I/O Ports 2 x USB 3.2 Gen1; 1 x Mini-DP port; 1 x RJ-45 Mgmt. LAN port; 1 x Debug port

Expansion Bays Total (Free): 4 x 3.5" hot-swap bays; Support 4 x NVMe/SATA/SAS

Expansion Slots Total (Free): 2 x PCIe Gen5 x16 (FHHL); 2 x OCP3.0 Gen5 x16



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
