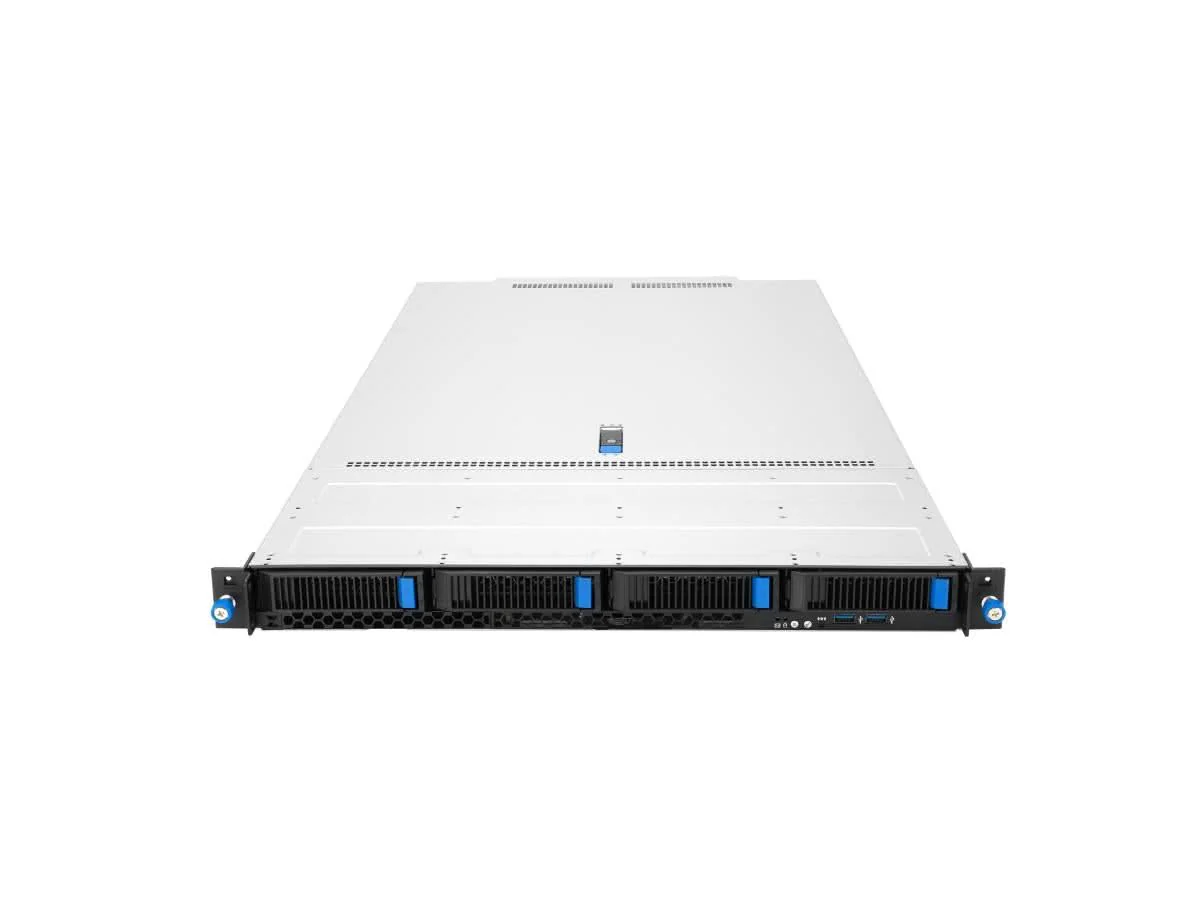

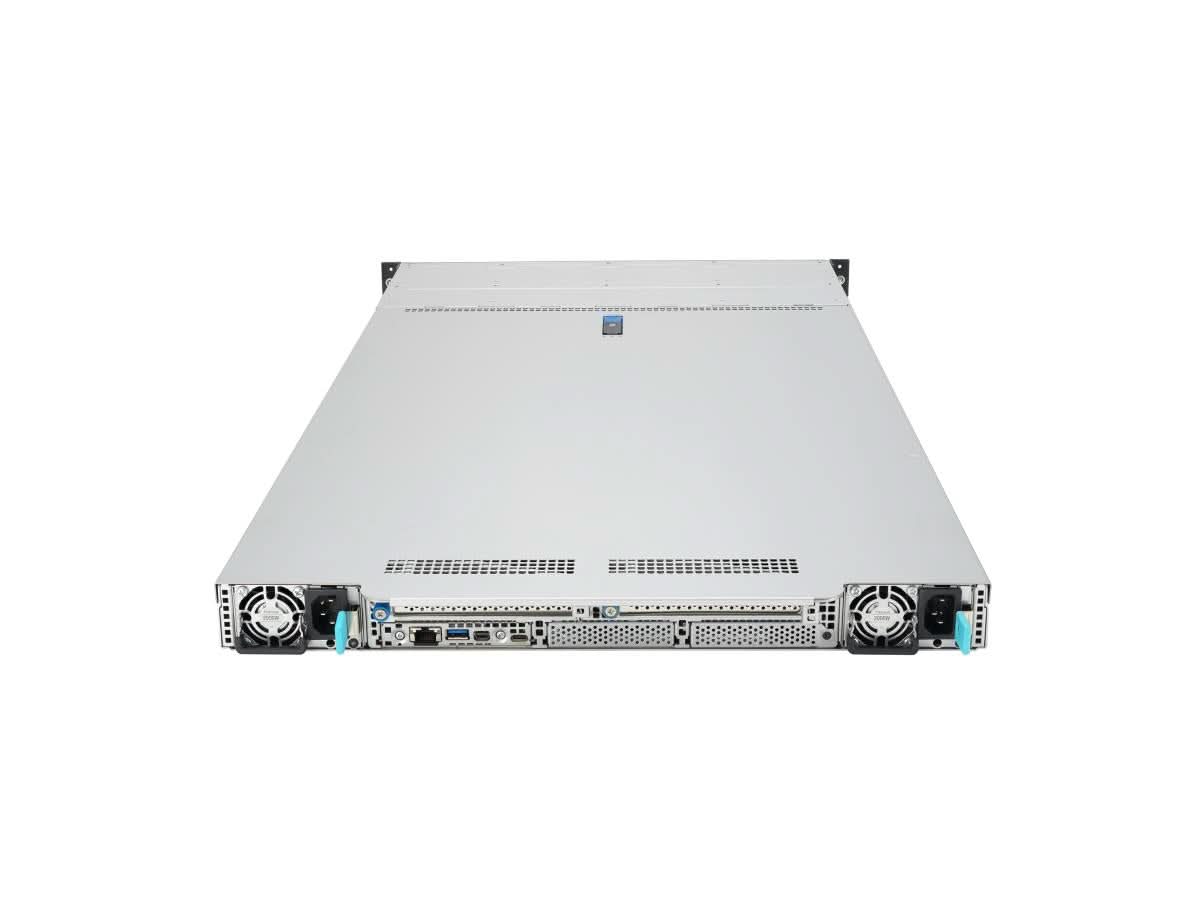

 ASUS RS700-E12-RS4U-2KW10G Dual Intel Xeon 6 1U Server



Specifications

Model Number:  RS700-E12-RS4U-2KW10G

Brand:   ASUS

Alt Part Number(s):    RS700-E12-RS4U-2KW10G

Product Type:  Server



Technical Description

Brand:  ASUS

Model:  RS700-E12-RS4U-2KW10G

Form Factor: 1U Rackmount, GPU Servers

Processor / Type: Xeon

Processor / Manufacturer: Intel

RAM Form Factor: DIMM

RAM / Total Slots Qty: 32

RAM / Max Supported Size: 4 TB

Hard Drive / Interface Type: NVMe; PCI Express

Hard Drive / Bays Qty: 4

Power / Device Type: Power Supply

Power / Redundant Capable: Yes

Power / Redundant Scheme: 1+1

Power / Provided (W): 2000 Watt

Power / Voltage Required: 100-127V~/220-240V, 50-60Hz

Interfaces & Connections: 1 × Management Port, 2 × USB 3.2 Gen1 ports (Rear), 1 × Mini-DP port (Rear), 1 × RJ-45 Management LAN port (Rear), 1 × Debug port (Rear)

Expansion Slots Total (Free): Total 4 expansion slots: 2 × PCIe Gen5 x16 (FHHL), 2 × OCP3.0 Gen5 x16 (SFF)

Features: Superior Performance for Multi-tasking; Modular and scalable architecture; All-NVMe Storage Design

Min Operating Temperature: 10°C

Max Operating Temperature: 35°C



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
