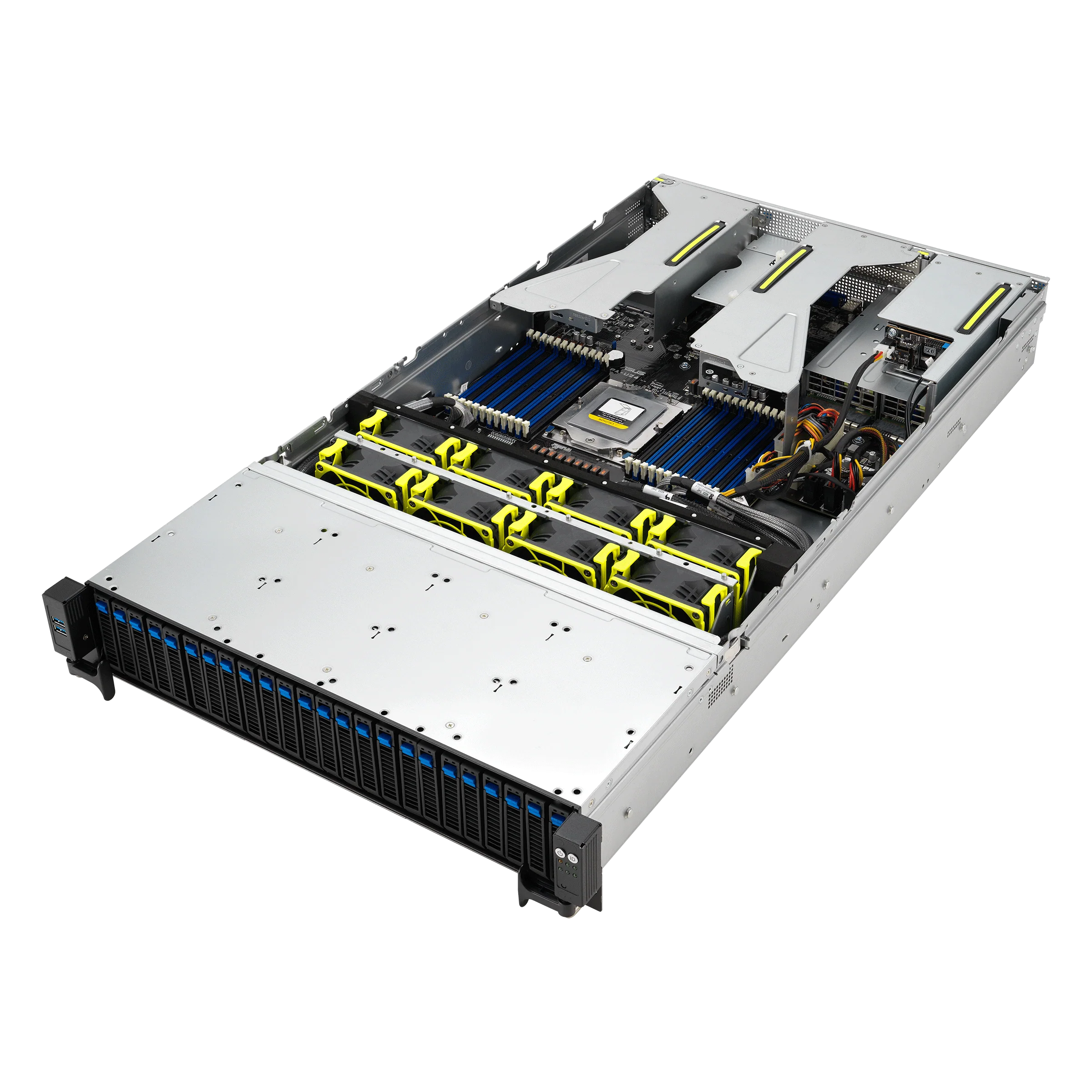

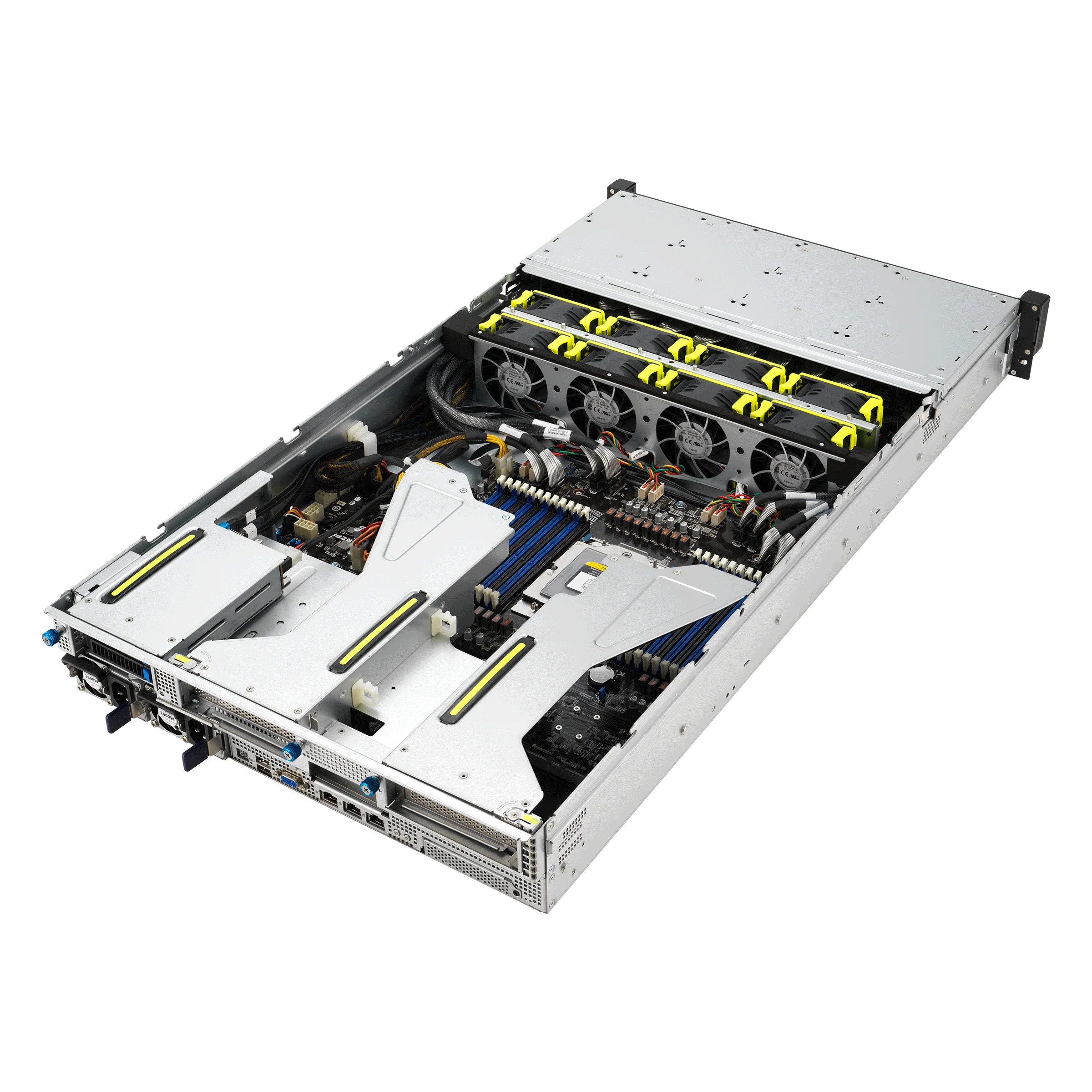

ASUS RS520A-E12-RS24U 2U Storage Server with 16-Core AMD EPYC 32GB DDR5 480GB SSD - Fully Customizable

Product image 1
1 / 4

ASUS RS520A-E12-RS24U 2U Storage Server with 16-Core AMD EPYC 32GB DDR5 480GB SSD - Fully Customizable

IN STOCK, READY TO SHIP SAME DAY!

Asus RS520A-E12-RS24U 2U Rack-Mountable Server – Pre-Configured and Ready for Deployment

This high-performance 2U rack-mountable Storage server is pre-configured and optimized for demanding workloads. Designed with cutting-edge components, it offers robust processing power, ample memory, and reliable storage to meet your business or data center needs.

Included components in the server:

Component

Description

Processor

Powered by an AMD EPYC 9124 16 Core, a base clock speed of 3.0GHz, and 64MB cache, delivering efficient multi-core performance for intensive tasks.

Memory

Equipped with 32GB of high-speed DDR5 SDRAM to handle memory-intensive applications seamlessly.

Primary Storage

A 480 GB SSD ensures ultra-fast read/write speeds and reliable data access.



Customizable Server Solutions

We specialize in custom server builds tailored to your requirements. From component integration to full assembly and comprehensive burn-in testing, we ensure reliability and top-tier performance for your needs.

Key Specifications

Component

Description

Processor

• 1 x Socket SP5 (LGA 6096)
• 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
• AMD EPYC™ 9004 Series Processors (Air cool with STD HSK up to 400W)

Memory

• 24 x DIMM slots
• DDR5 4800/4400/4000/3600 RDIMM / 3DS RDIMM
• 1DPC up to 4800
• 2DPC up to 4000 (1R+1R)
• 2DPC up to 3600 (1R+2R / 2R+2R)
• Maximum 6144GB

Expansion Slots (16/12 NVMe SKU)

• Up to 5 PCIe Gen5 slots + 1 OCP3.0
• Option: 2 x PCIe Gen5 x16 (FHFL) or 4 x PCIe Gen5 x8 (FHFL)
• 1 x PCIe Gen5 x8, LP
• 1 x OCP 3.0 Slot (PCIe Gen5 x16)

Storage

Storage Controller:
• CPU Integrated or Optional kits: Broadcom Mega RAID 9560-16i / ASUS PIKE II 3008-8i (8-port SAS 12G HBA card)

Drive Bays – Front:
• 16 NVMe SKU: 24 x 2.5” hot-swap bays supporting 16x NVMe + 8 SAS/SATA (RAID/PIKE cable needed for SAS/SATA)
• 12 NVMe SKU: 24 x 2.5” hot-swap bays supporting 12x NVMe + 12 SAS/SATA (SAS support only from optional SAS HBA/RAID card)
• 24 NVMe SKU: 24 x 2.5” hot-swap bays supporting 24x NVMe

Drive Bays – Rear:
• 2 x 2.5” SATA hot-swap bays
• 2 x M.2 connectors

Networking

• 1 x Dual Port Intel I350-AM2 GbE LAN Controller
• 1 x Management Port

Graphics

• Up to 4 single-slot or 2 double-slot GPU cards

Note: 24 NVMe SKU cannot support GPU

Dimensions

• 840mm x 449mm x 88.1mm (2U)
• 33.07” x 17.68” x 3.47

Front I/O

• 2 x USB 3.2 Gen1 ports
• 1 x VGA port

Rear I/O

• 2 x USB 3.2 Gen1 ports
• 1 x VGA port
• 1 x Management port
• 2 x 1GbE LAN ports

Weight

• Net Weight: 19.14 kg

• Gross Weight: 26.63 kg

Power Supply

Options:
• 1+1 Redundant 1600W 80 PLUS Titanium
• 1+1 Redundant 1600W/1200W 80 PLUS Platinum



This server is a perfect fit for enterprise applications, virtualization, or high-performance computing. With its scalable features and robust build, it's ready to tackle the most demanding workloads

Compatible CPU/

Part Number

Description

100-000000802

AMD EPYC™ 9124 Processor 16-core 3.00GHz 64MB Cache (200W)

100-000000939

AMD EPYC™ 9224 Processor 24-core 2.50GHz 64MB Cache (200W)

100-000000798

AMD EPYC™ 9354 Processor 32-core 3.25GHz 256MB Cache (280W)

100-000000478

AMD EPYC™ 9454 Processor 48-core 2.75GHz 256MB Cache (290W)

100-000000799

AMD EPYC™ 9534 Processor 64-core 2.45GHz 256MB Cache (280W)

100-000000789

AMD EPYC™ 9654 Processor 96-core 2.40GHz 384MB Cache (360W)



Compatible RAM

4800MHz ECC Registered DDR5 DIMMs

16GB PC5-38400 4800MHz DDR5 ECC RDIMM

32GB PC5-38400 4800MHz DDR5 ECC RDIMM

64GB PC5-38400 4800MHz DDR5 ECC RDIMM

128GB PC5-38400 4800MHz DDR5 ECC RDIMM



Compatible SSD

480GB – 3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm)

960GB – 3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive

3.84TB – 30.72TB Solidigm SSD D7-P5520 Series U.2 PCIe 4.0 x4 NVMe Solid State Drive

1.92TB – 30.72TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm)

1.92TB – 15.0TB Samsung PM9A3 Series U.2 PCIe 4.0 x4 NVMe Solid State Drive (7mm)



Compatible Network Cards

Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter N225P - PCIe 3.0 x8 - OCP 3.0 - 2x SFP28

Intel® 10-Gigabit Ethernet Network Adapter X710-T2L - PCIe 3.0 x8 - OCP 3.0 - 2x RJ45

Intel® 100-Gigabit Ethernet Network Adapter E810-CQDA - PCIe 4.0 x16 - OCP 3.0 - 1x QSFP28

NVIDIA® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter - PCIe 4.0 x8 - 2x SFP28 - Secure Boot

NVIDIA® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter - PCIe 4.0 x16 - 1x QSFP56

NVIDIA® ConnectX®-7 200-Gigabit Ethernet Adapter - PCIe 5.0 x16 - 2x QSFP112 - Crypto Enabled



Compatible Operating System

Microsoft Windows Server 2022

Rocky Linux

Ubuntu Linux

Red Hat Enterprise Linux



Boost your enterprise performance with the ASUS RS520A-E12-RS24U Server 16-Core AMD 32GB DDR5 480GB SSD—ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
