Overview

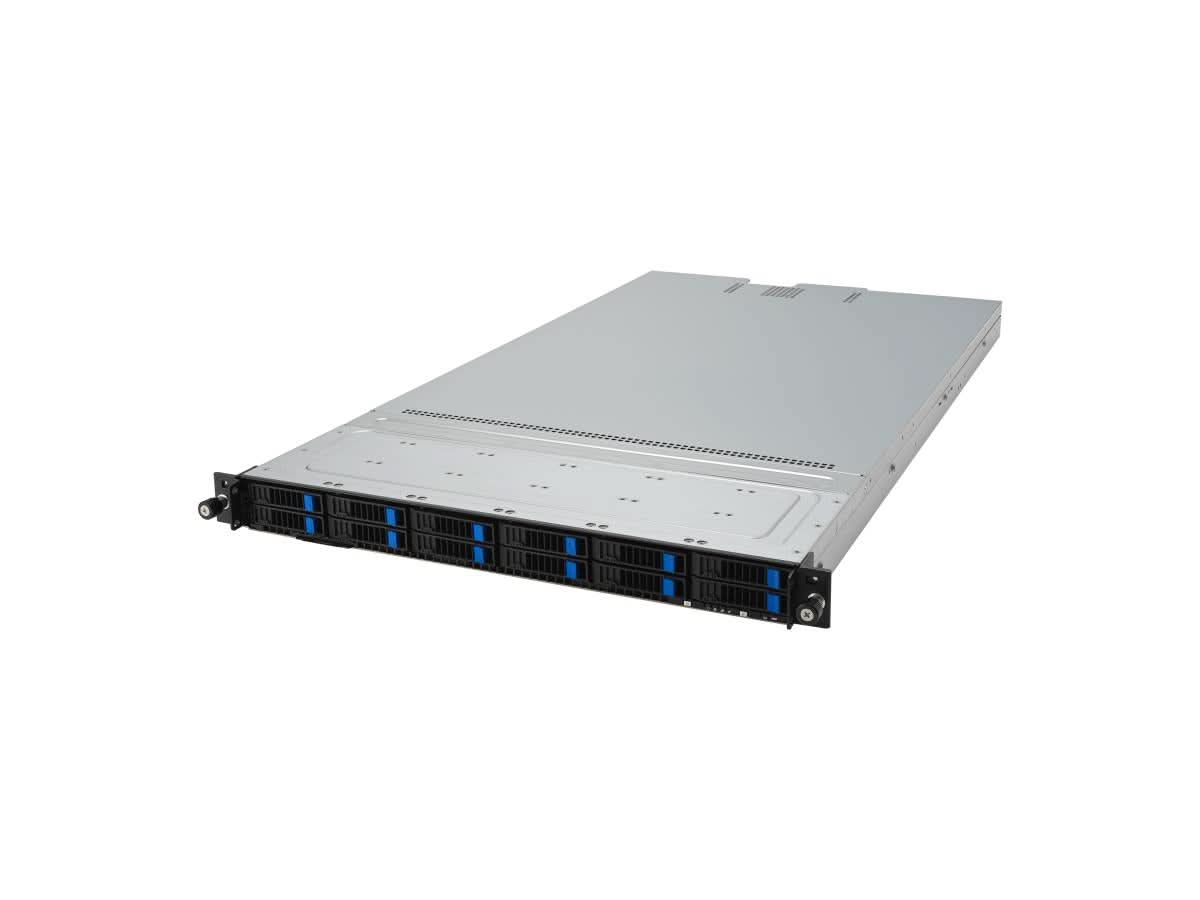

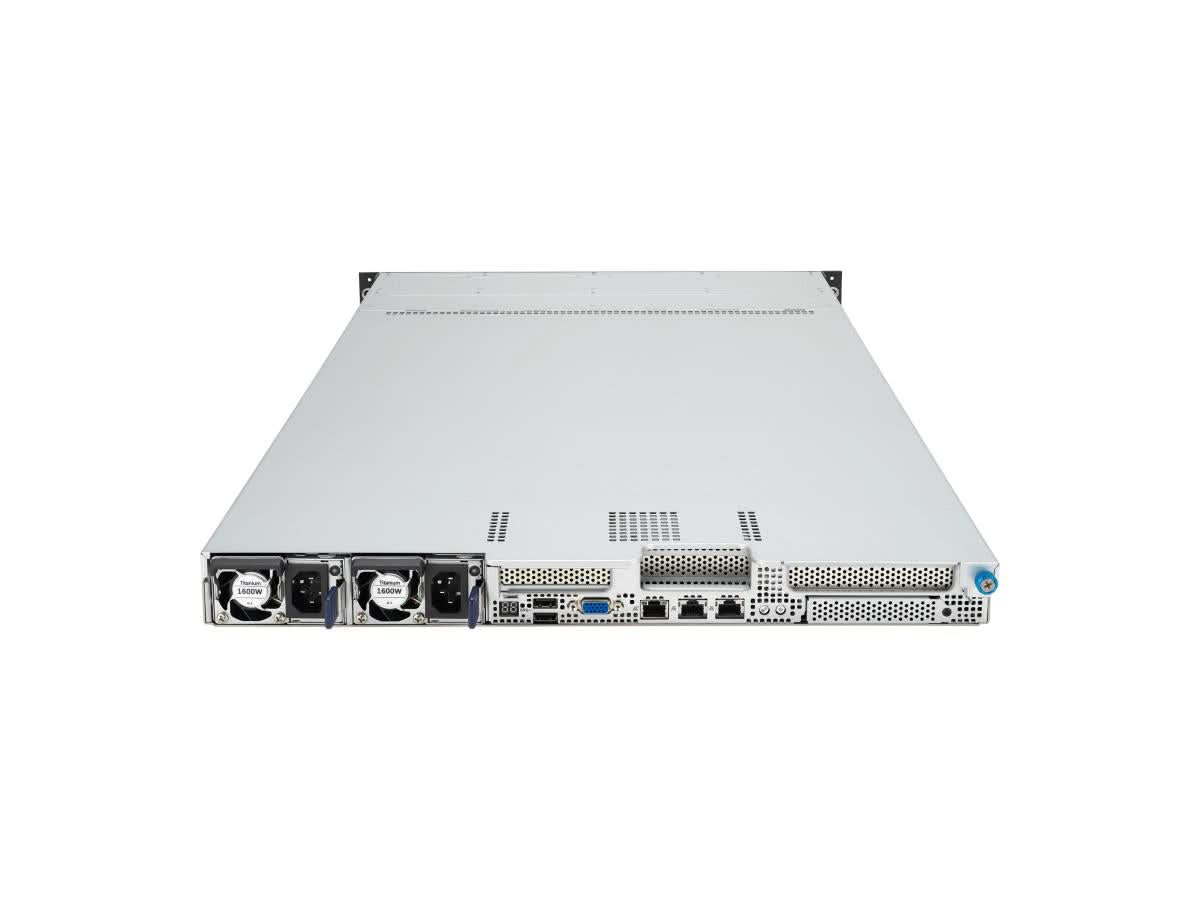

ASUS RS501A-E12-RS12-16TWH is a 1U server barebone powered by AMD EPYC 9005 series CPUs, supporting up to 3TB DDR5 across 24 DIMM slots. It features 12x 2.5" drive bays, redundant 1600W power, and up to 3 PCIe Gen5 slots for scalable, energy-efficient performance.



Specifications

Model Number: RS501A-E12-RS12-16TWH

Brand:  ASUS

Alt Part Number(s):  RS501A-E12-RS12-16TWH

Product Type: Server



Technical Description

Brand: RS501A-E12-RS12-16TWH

Model:   ASUS

Form Factor: 1U Rackmount, GPU Servers

Processor / Type: EPYC 9005 series

Processor / Manufacturer: AMD

RAM / Technology: DDR5

RAM / Total Slots Qty: 24

RAM / Max Supported Size: 3.072 TB

Hard Drive / Size: 2.5"

Hard Drive / Bays Qty: 12

Data Link Protocol: Gigabit Ethernet

Power / Device Type: Power Supply - Redundant

Power / Installed Qty: 2

Power / Provided (W): 1600 Watt

Interfaces & Connections: 2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x Management port; 2 x 1GbE LAN ports

Expansion Slots Total (Free): Up to 3 PCIe Gen5 slots; 1 OCP3.0

Width: 33.17 Inch

Depth: 17.68 Inch

Height: 1.73 Inch

Energy Star Compliant: Y
