Overview

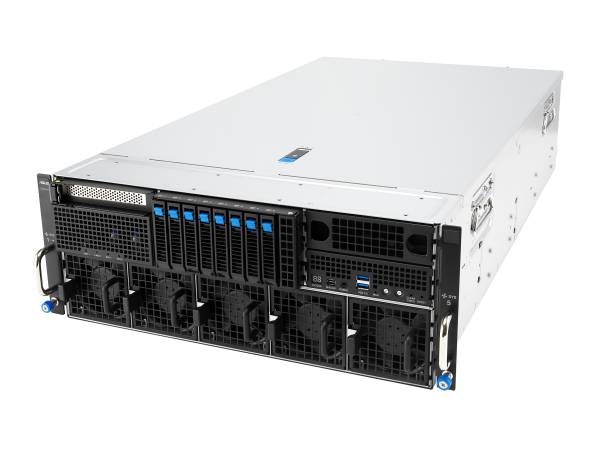

ASUS ESC8000-E12P-32W from the ESC GPU server series features dual Intel Xeon processors with 128 cores and 32 DDR5 slots supporting up to 4 TB memory. It includes 8 dual-slot GPU support, 8 NVMe 2.5" bays, multiple PCIe Gen5 expansion slots, 4 redundant 3.2 KW power supplies, and 10 Gb Ethernet for high-performance AI and GPU compute workloads.



Specifications

Model Number: ESC8000-E12P-32W

Brand:   ASUS

Alt Part Number(s):   ESC8000-E12P-32W

Product Type:  Server



Technical Description

Brand:  ASUS

Model: ESC8000-E12P-32W

Form Factor: 4U Rackmount, GPU Server

Processor Type: Xeon

Processor Manufacturer: Intel

Number of Processors Installed: 2

RAM Technology: DDR5

Total RAM Slots: 32

Hard Drive Interface Type: PCIe 5.0; NVMe

Data Link Protocol: 10 Gigabit Ethernet

Power Device Type: Power Supply - Redundant

Number of Power Supplies Installed: 4

Power Provided: 3.2 KW

Power Voltage Required: 20-240 Vac, 16A (x4), 50/60Hz

80 PLUS Certification: 80 PLUS Titanium

Front I/O Ports: 1 x Mini DisplayPort; 2 x USB 5Gbps ports; 1 x Debug port

Rear I/O Ports: 1 x USB 5Gbps port; 2 x RJ-45 LAN ports; 1 x RJ-45 management LAN port

Expansion Slots Total (Free): 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16, FHFL); 5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16, FHFL); 1 x PCIe x16 (Gen5 x8, FHHL)

GPU Support: 8 dual-slot NVIDIA H200 GPUs; NVIDIA RTX PRO 6000 Blackwell Server Edition; Intel Gaudi 3 PCIe AI Accelerator

NVMe Support: 8 x 2.5-inch NVMe

Width: 31.5 Inch

Depth: 17.3 Inch

Height: 6.9 Inch

Weight: 42 Kg

Minimum Operating Temperature: 10 C

Maximum Operating Temperature: 35 C

Operating Humidity: 20% ~ 95% (Non-condensing)
