Overview

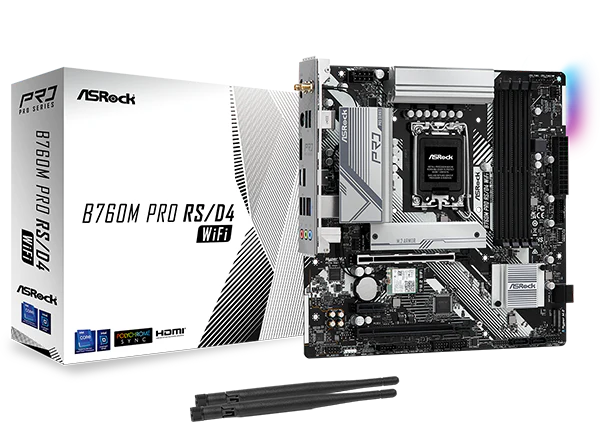

ASRock B760M PRO RS/D4 WIFI Motherboard features an Intel LGA1700 socket supporting 12th, 13th, and 14th Gen Core CPUs with DDR4 memory up to 128 GB. It includes PCIe 4.0 x16 GPU slot, 2 M.2 Gen4 slots, Wi-Fi 6E, Bluetooth 5.3, 2.5G Ethernet, HDMI/DisplayPort outputs, and 7.1 HD audio in a Micro ATX form factor.



Specifications

Model Number:  B760M PRO RS/D4 WIFI

Brand:  ASRock

Alt Part Number(s):  B760M PRO RS/D4 WIFI

Product Type:  Motherboard



Technical Description

Brand:  ASRock

Model:  B760M PRO RS/D4 WIFI

CPU Socket: Intel LGA1700

Supported CPUs: 12th Gen Intel® Core™; 13th Gen Intel® Core™; 14th Gen Intel® Core™

Chipset: Intel® B760

Boost Tech: Turbo Boost Max 3.0; Thermal Velocity Boost; Adaptive Boost

Memory Type: DDR4

Memory Slots / Max: 4 DIMMs; up to 128 GB

Memory Speed: Up to 5333+ MHz (OC)

Memory Profiles: Intel XMP 2.0

PCIe GPU Slot: 1 × PCIe 4.0 x16

Integrated Graphics: Intel Xe / UHD (CPU dependent)

Display Outputs: HDMI 2.1 (up to 4K @ 60Hz); DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)

M.2 Slots: 2 × PCIe Gen4 x4

SATA Ports: 4 × SATA 6 Gb/s

RAID Support: RAID 0; RAID 1; RAID 5; RAID 10

LAN: 2.5G Ethernet (Dragon RTL8125BG)

Wireless: Wi-Fi 6E; Bluetooth 5.3

Audio Codec: Realtek ALC897

Audio Channels: 7.1 HD Audio with Nahimic

USB Ports: USB-C & USB-A (USB 3.2 Gen1 and USB 2.0)

Expansion Slots: PCIe 4.0 x16; PCIe 4.0 x4; PCIe 4.0 x1

VRM: 7+1+1 power phase; 50A Dr.MOS

Cooling: Multiple fan and water-pump headers with smart control

Form Factor: Micro-ATX; 24.4 × 24.4 cm

OS Support: Windows 10 64-bit; Windows 11 64-bit



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
