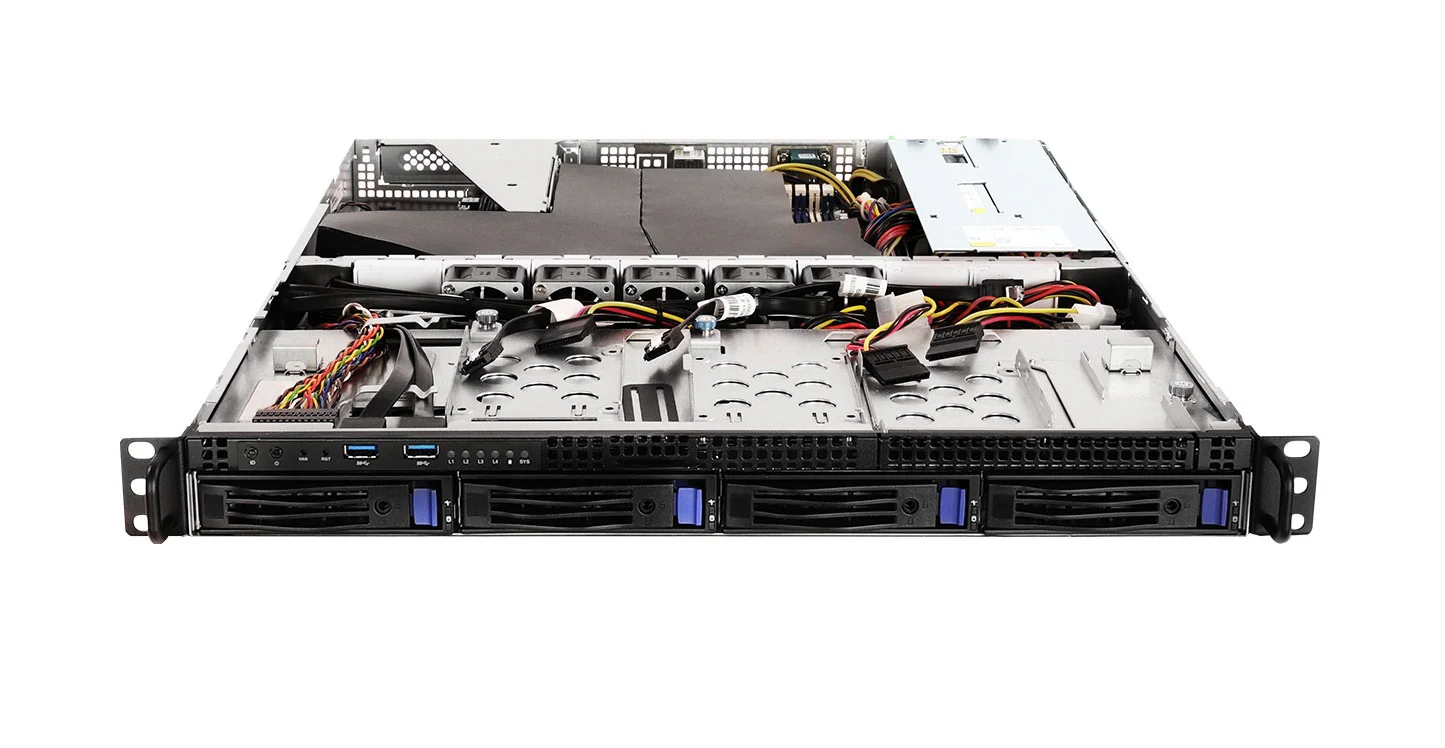

The ASRock Rack 1U4LW-X470 RPSU is a 1U rackmount barebone server system featuring a redundant power supply unit (RPSU). It is built on the AMD X470 chipset and is designed to support AMD AM4 Socket Ryzen Series processors, including 2nd and 3rd generation models



Specifications

Model Number:  1U4LW-X470 RPSU

Brand:  ASRock

Alt Part Number(s):  1U4LW-X470 RPSU

Product Type:  Barebone Server

Technical Description

Brand:  ASRock

Model Number:  1U4LW-X470 RPSU

Processor Type:  AMD Ryzen PRO 3000 and 2000 Series

Processor Core:  16 Core/32 Thread

Processor Power:  Up to 105W

Processor Socket:  AM4 PGA 1331

Motherboard:  X470D4U

Chipset Type:  AMD X470

Graphics Controller:  ASPEED AST2500 BMC

Rear I/O Ports:  2 × USB 3.2 Gen1 (Type-A), 1 × Dedicated IPMI LAN (management port), 1 x VGA (D-Sub), 1 × Serial port, 1 × UID button with LED

Front I/O Ports:  2 x USB 3.0 ports

Networking:  2 × RJ45 LAN (Gigabit Ethernet)

RAID Levels:  0, 1, 10

Number of Drive Bays:  4 × SATA 3.5" hot-swap bays (front), 2/3 × internal 2.5" SATA bays, M.2 slots (NVMe/SATA)

Expansion Slots:  1 PCIe 3.0 x16 slot (splittable), 1 PCIe 3.0 x8 slot, and 1 PCIe 3.0 x4 slot

Memory Supported:  Up to 128GB DDR4 ECC/UDIMM

Memory Size:  ECC/UDIMM: 32GB, 16GB, 8GB

Memory Technology:  DDR4

Memory Speed:  ECC/UDIMM: 3200/2933/2666/2400/2133 MHz

Memory Slots:  4 × DDR4 DIMM slots

Power Supply:  300W 1+1 Redundant PSU, 80 Plus Gold

System Cooling:  5x 40x28mm PWM Easy-Swap Fans

Form Factor:  1U Rackmount
