Overview

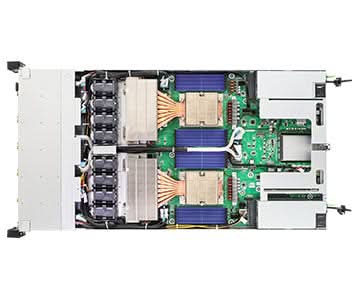

ASRock 1U12E-TURIN2/EVAC 1U12E-TURIN2 series is a high density 1U rackmount server supporting dual AMD EPYC 9005 and 9004 processors with up to 6 TB DDR5 memory and PCIe 5.0 architecture. It offers 12 hot swap NVMe drive bays, dual socket SP5 support, redundant 80 Plus Platinum power supplies, and advanced management features for demanding data center and AI workloads.

Specifications

Model Number: 1U12E-TURIN2/EVAC

Brand: ASrock

Alt Part Number(s): 1U12E-TURIN2/EVAC

Product Type: Server

Technical Description

Brand: ASRock

Model: 1U12E-TURIN2/EVAC

Form Factor: 1U Rackmount

Dimensions: 830 x 438 x 43.5 mm (32.7'' x 17.2'' x 1.7'')

Support MB: TURIN2D24TM3-2L+/500W/1U12E

Buttons: Power button w/ LED; ID button w/ LED; System reset

LEDs: HDD Activity; LAN 1/2; System fault

I/O Ports: 1 Type-A (USB 3.2 Gen1)

Front Side Drive Bay: 12 Hot-swap 2.5" NVMe (PCIe 5.0 x4) drive bays

Front Side Backplane: 12-port NVMe passive backplanes

Internal Side: 1 M-key (PCIe 3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0]; 1 M-key (PCIe 3.0 x4), supports 2280/2242 form factor [CPU1]

Power Supply Type: 1+1 CRPS

Output Watts: 1000W @100–127Vac input; 2000W @200–240Vac input

Efficiency: 80-PLUS Platinum

AC Input: Low-line: 100–127Vac, 60/50Hz; High-line: 200–240Vac, 60/50Hz

System Fan: 8 Easy-swap 40 x 56 mm fans

CPU: Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology); AMD EPYC™ 97x4 series processors

Socket: Dual Socket SP5 (LGA 6096)

Thermal Design Power: Up to 360W

Chipset: System on Chip

Supported DIMM Quantity: 12 + 12 DIMM slots (1DPC)

Supported Type: DDR5 288-pin RDIMM; DDR5 RDIMM-3DS

Max. Capacity per DIMM: RDIMM: 128GB (2Rx4); RDIMM-3DS: 256GB (2Rx4)

Max. DIMM Frequency: 6400 MHz

Voltage: 1.1V

PCIe x16: Rear: 2 FHHL PCIe 5.0 x16 [CPU0][CPU1]

TPM Support: TPM-SPI

Additional GbE Controller: Intel® i350; 2 RJ45 (1GbE)

OCP Slot: 1 OCP NIC 3.0 (PCIe 5.0 x16) [CPU1]

BMC Controller: ASPEED AST2600

IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN

Graphics Controller: ASPEED AST2600

VRAM: DDR4 512MB

UID Button/LED: 1 UID button w/ LED

Video Port: 1 DB15 (VGA)

Serial Port: 1 RJ45 (COM)

USB Ports: 2 Type-A (USB 3.2 Gen1)

RJ45 Ports: 2 RJ45 (1GbE); 1 dedicated IPMI

BIOS Type: AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM

BIOS Features: ASRock Rack Instant Flash; ACPI 6.4 and above compliance wake up events; SMBIOS 3.5.0 and above; Plug and Play (PnP)

Temperature Monitoring: CPU temperature sensing; MB temperature sensing; Card side temperature sensing

Fan Monitoring: Fan tachometer; CPU quiet fan (auto-adjust by CPU temperature); Fan multi-speed control

Voltage Monitoring: P0_VDDCR_CPU0; P0_VDDCR_CPU1; P0_VDDCR_SOC; P0_VDD_18_DUAL; P0_VDD_11_S3; P0_VDDIO; P1_VDDCR_CPU0; P1_VDDCR_CPU1; P1_VDDCR_SOC; P1_VDD_18_DUAL; P1_VDD_11_S3; P1_VDDIO; +BAT; +12V; +3VSB; +5VSB

Temperature Range: Operating: 10°C ~ 35°C; Non-operating: -40°C ~ 70°C

Humidity: Non-operating: 20% ~ 90% (non-condensing)



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
