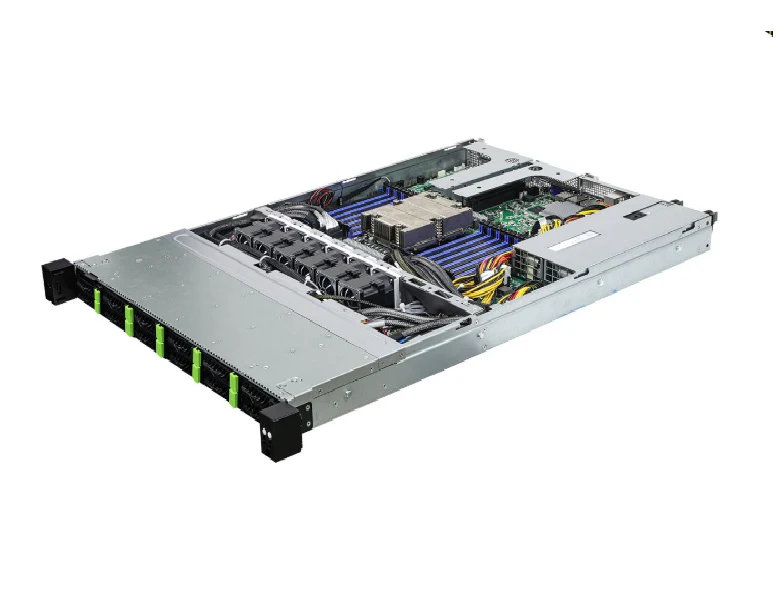

The ASRock Rack 1U12E-GENOA/2L2T is a high-density 1U rackmount server barebone designed to maximize memory and storage capacity for a single-socket system. It is primarily targeted at workloads requiring significant RAM, such as high-performance computing (HPC), AI, and virtualization.



Specifications

Model Number:  1U12E-GENOA/2L2T

Brand:  ASRock

Alt Part Number(s):  1U12E-GENOA/2L2T

Product Type:  Barebone Server

Technical Description

Brand:  ASRock

Model Number:  1U12E-GENOA/2L2T

Processor Type:  AMD EPYC 9005/9004 Series

Processor Core:  128-Core/ 256-Thread

Processor Power:  200W to ~400W

Processor Socket:  Single Socket SP5 (LGA 6096)

Motherboard:  GENOAD24QM3-2L2T/BCM

Chipset Type:  AMD SoC (integrated in EPYC CPU)

Graphics Controller:  ASPEED AST2600

VRAM:  DDR4 512MB

Networking:  2 × 1GbE RJ45 Intel i210 (Broadcom BCM57416)

RAID Levels:  NVMe RAID 0, 1, 5, 6, 10 support is flexible (software + optional hardware)

Number of Drive Bays:  (12) hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays

Rear Expansion Slots:  2 FHHL PCIe5.0 x16

OCP slot:  1 OCP NIC 3.0 (PCIe5.0 x16)

Memory Supported:  Up to~ 6 TB

Memory Size:  128GB (RDIMM), RDIMM-3DS (256GB)

Memory Technology:  DDR5

Memory Speed:  4800 MHz (1DPC); 3600 MHz (2DPC)

Memory Slots:  24 DIMM slots

Memory Channels:  12-Channels

Cooling:  6 PWM hot-swap 40 x 56 mm fans

Power Supply:  (1+1) Redundant 1000W CRPS 80PLUS Platinum

Form Factor:  1U Rackmount

Height:  1.7"

Width:  17.2"

Depth:  26.6"
