Overview

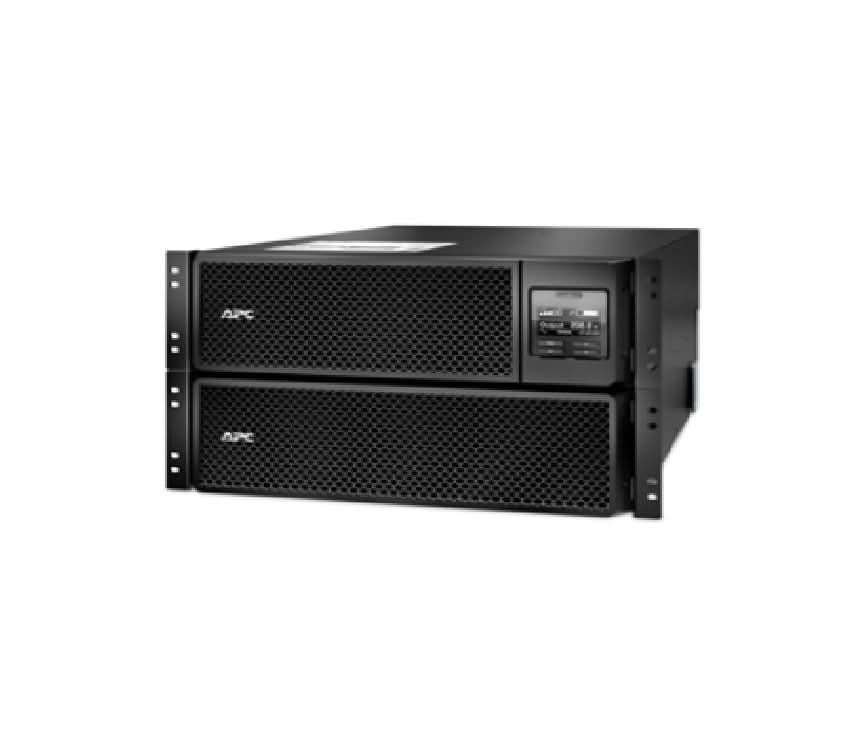

The APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, Marine (SRT5KRMXLIM) is a robust, double-conversion online uninterruptible power supply (UPS) designed for critical IT applications in demanding environments such as shipboard and other transportation settings. It delivers clean, continuous, sine wave power with zero transfer time to protect sensitive electronic equipment from power disturbances.



Specifications

Model Number:  SRT5KRMXLIM

Brand:  APC

Alt Part Number(s):  SRT5KRMXLIM

Product Type:  UPS System

Technical Description

Brand:  APC

Model Number:  SRT5KRMXLIM

Series:  Smart-UPS SRT

Input Voltage:  230 V

Output Voltage:  230 V

Receptacle Type:  4 × IEC 60320 C19

Receptacle Details:  6 × IEC 60320 C13

Backup/Run Time (Full Load):  12 Min

Backup/Run Time (Half Load):  25.6 Min

Battery Recharge Time:  1-Hour

Battery Chemistry:  Lead Acid

Load Capacity (VA):  5,000VA

Load Capacity (W):  4,500W

Output Frequency:  50/60 Hz

Circuit Protection:  Circuit breaker

Form Factor:  3U Rackmount

Height:  17.01"

Width:  3.50"

Depth:  19.29"
