Overview

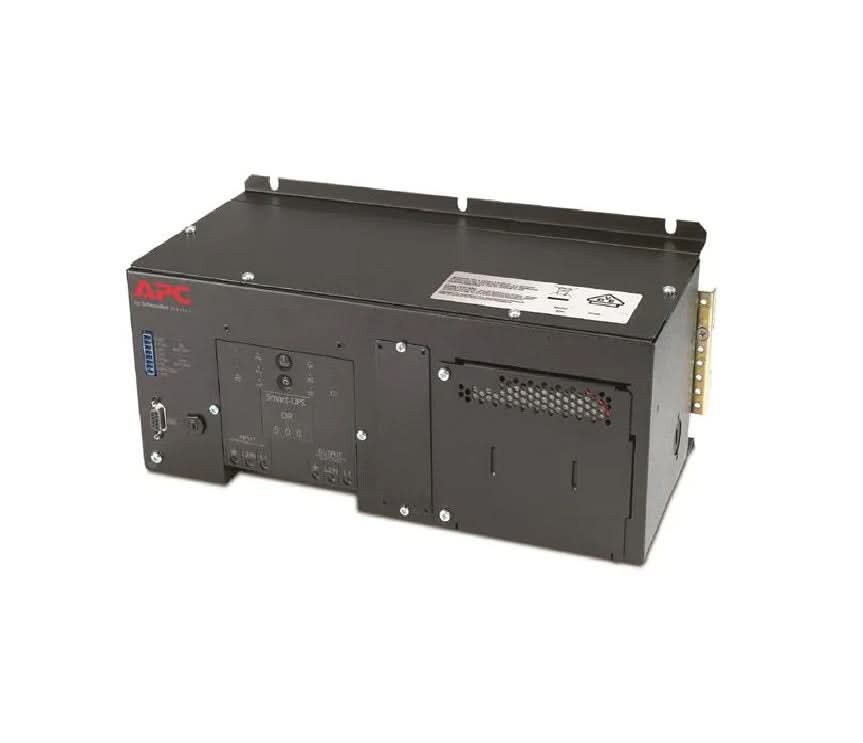

The APC SUA500PDR is a line-interactive Industrial Panel and DIN Rail Uninterruptible Power Supply (UPS), providing 500VA/325 Watts of sine wave power backup for critical control systems in harsh environments. It is specifically designed for mounting inside control panel enclosures.



Specifications

Model Number:  SUA500PDR

Brand:  APC

Alt Part Number(s):  SUA500PDR

Product Type:  UPS System

Technical Description

Brand:  APC

Model Number:  SUA500PDR

Series:  Smart‑UPS

Input Frequency: 50 / 60 Hz

Input Voltage:  120 V

Output Voltage:  120 V

Receptacle Type:  Hard-wired 3-wire

Receptacle Details: Hard-wire 3-wire

Backup/Run Time (Full Load):  8 Min

Backup/Run Time (Half Load):  20-25Min

Battery Recharge Time: 2.5-Hour

Cord Length: 5ft

Battery Chemistry:  Lead Acid

Load Capacity (VA): 500VA

Load Capacity (W):  325W

Circuit Protection:  Circuit breaker

Form Factor:  DIN-rail

Height:  90"

Width:  180"

Depth:  320"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
