Overview

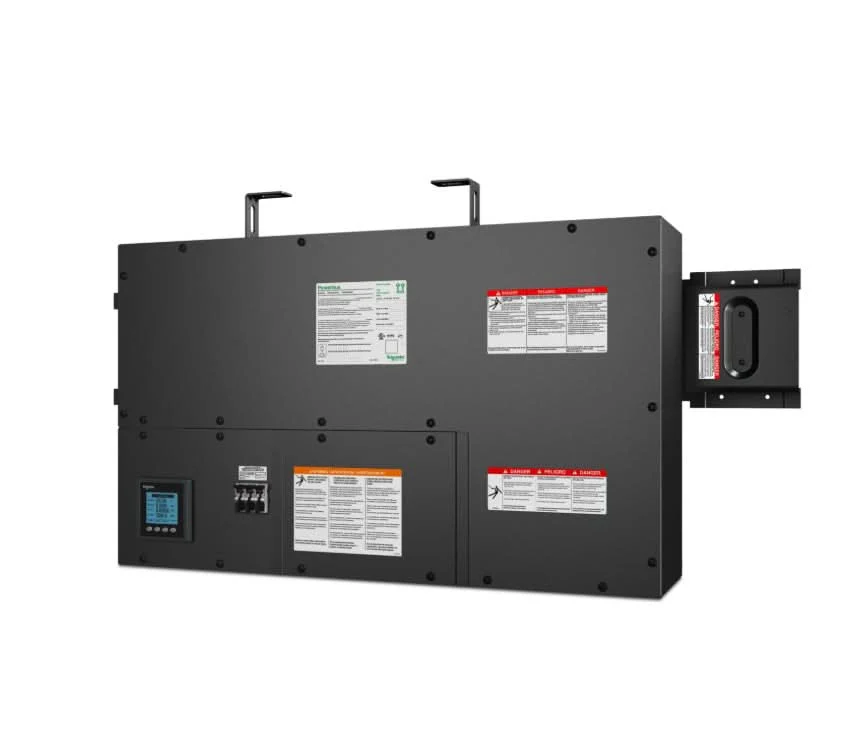

The product code PBCE4A400AST120B refers to an APC by Schneider Electric Powerbus busway straight distribution section. It is designed for scalable and flexible overhead power distribution in environments like data centers. Modular design with spring-joint connectors for fast and easy "hook-swing" installation without special tools.



Specifications

Model Number:  PBCE4A400AST120B

Brand:  APC

Alt Part Number(s):  PBCE4A400AST120B

Product Type:  PB Busway

Technical Description

Brand:  APC

Model Number:  PBCE4A400AST120B

Input Phase:  3-Phase

Rated Current:  400A

Input Voltage:  208V

Frequency:  60 Hz

Output Voltage:  415 V

Output Connector:  NEMA L6-30R

Cord Length:  10ft

Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)

Operating Relative Humidity: 0 – 95 %

Operating Elevation: 0 – 10,000 ft (0 – 3,000 m)

Storage Temp: -22 °F to 158 °F (-30 °C to 70 °C)

Height:  4.35"

Width:  120"

Depth:  5.51"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
