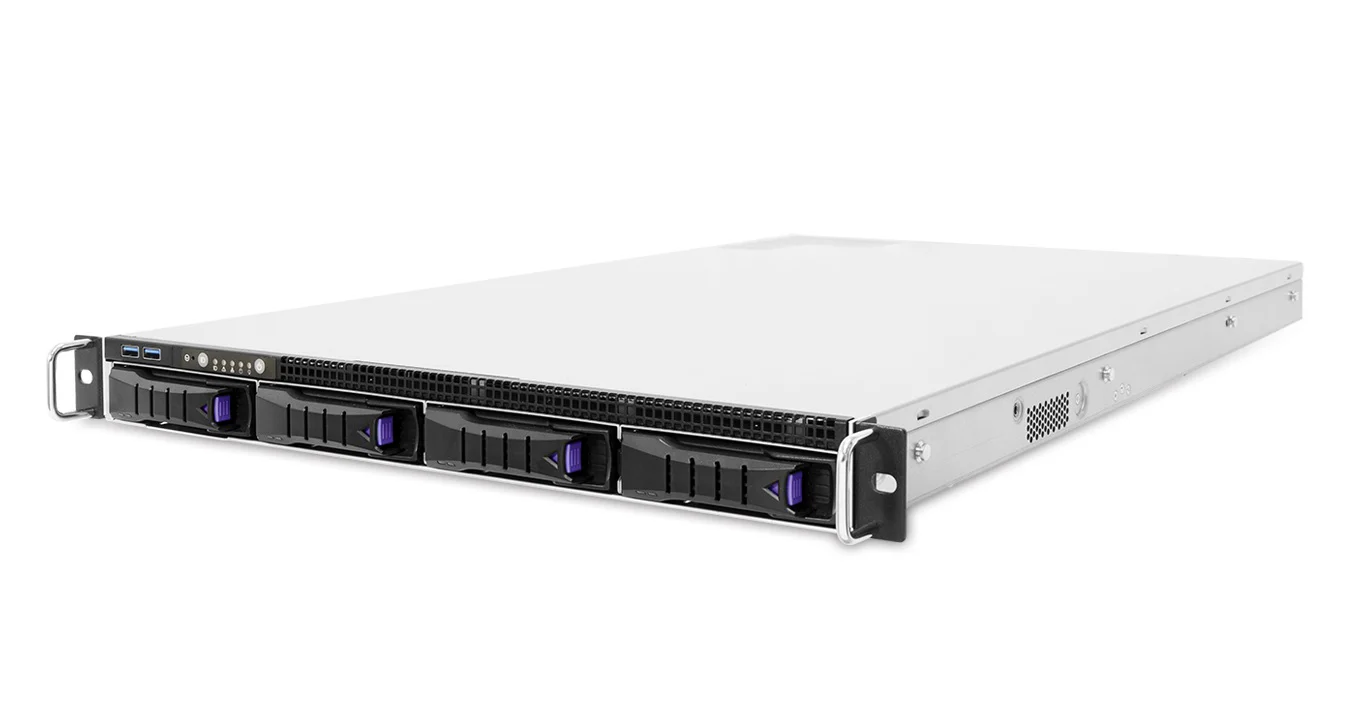

The AIC XP1-S101LE01 is a 1U rackmount storage server barebone system from the SB101-LE series. Unlike the newer Xeon Scalable models, this specific configuration is designed for the Intel Xeon E3-1200 v5 and v6 product families



Specifications

Model Number:  XP1-S101LE01

Brand:  AIC

Alt Part Number(s):  XP1-S101LE01

Product Type:  Barebone Server

Technical Description

Brand:  AIC

Model Number:  XP1-S101LE01

Series:  SB101-LE

Processor Type:  Intel Xeon E3-1200 v5/v6

Processor Core:  4 Core/8Thread

Processor Power:  TDP up to 79W

Processor Socket:  LGA 1151 (Socket H4)

Chipset Type:  Intel C232

Motherboard:  AIC Antlia server board

Graphics Controller:  Aspeed AST2400

Ports:  4x USB 3.0 Type A Ports (rear), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 dedicated for BMC management Port

Networking:  2x RJ45 LAN Ports

Number of Drive Bays:  4 × 3.5″ hot‑swap + 4 × 2.5″ internal

Expansion Slots:  1 x PCIe 3.0 x16 slot

Memory Supported:  64GB

Memory Size:  Up to 16GB each

Memory Technology:  DDR4

Memory Speed:  2400/2133MHz

Memory Slots:  4 x DIMM slots

Power Supply:  400W single 80+ Gold

System Cooling:  4 x high-pressure fans for front-to-back airflow

Form Factor:  1U Rackmount
