Overview

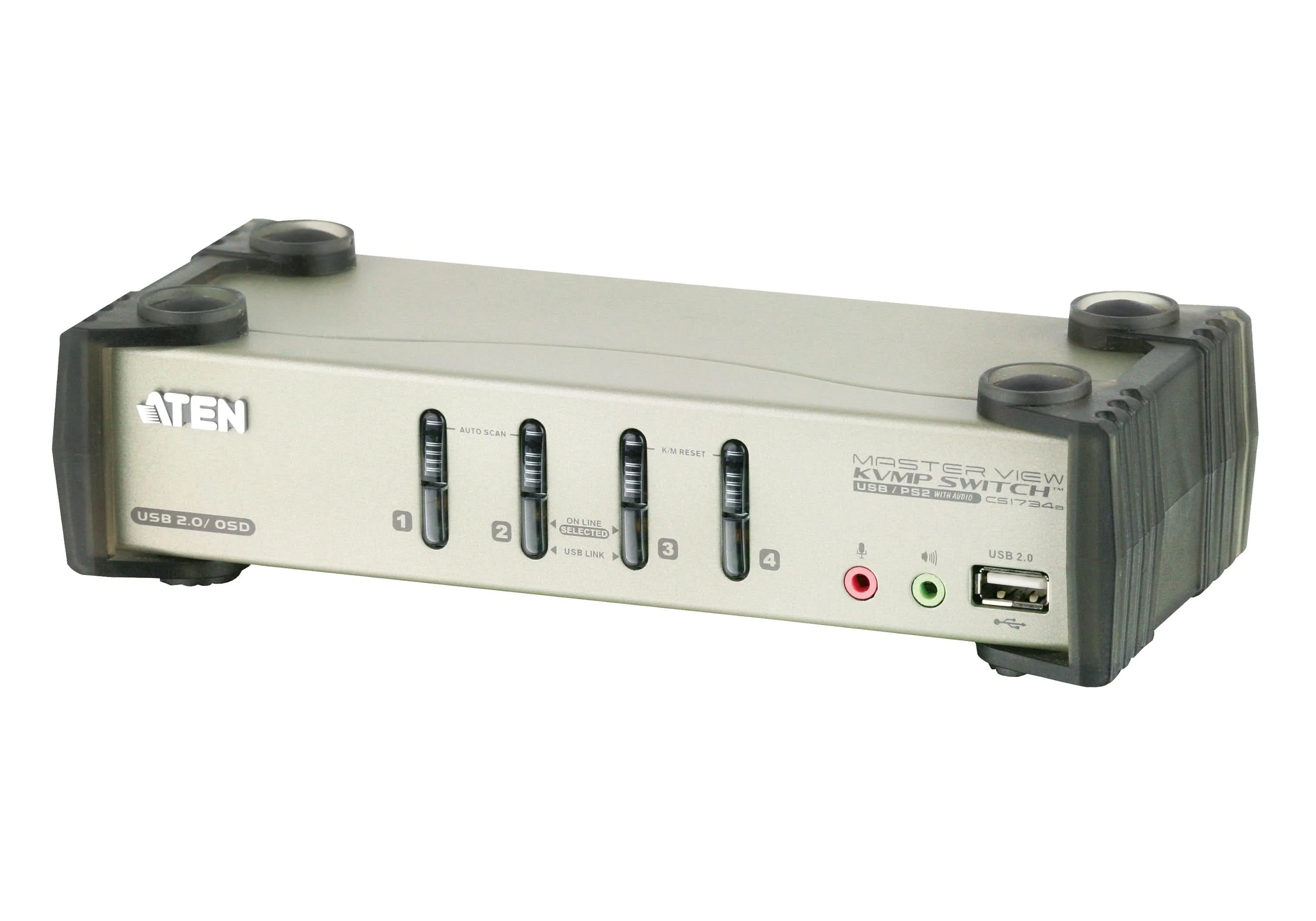

The CS1734B is a four port KVMP switch combined with a two-port USB 2.0 hub. As a KVM switch, It allow users to access four computers from a single keyboard, monitor, and mouse console. The CS1734B improves the previous design by given the user a choice of either transferring keyboard and mouse data to computer via a usb connection. If usb connection is used integrated two port usb hub is is available for each computer to access any peripherals connected to the hub on a one at a time.

Specifications

Model Number: VE172R

Brand: ATEN

Alt Part Number(s): VE172R

Product Type:KVM Switch

Technical Description

Brand: ATEN

Model: VE172R

Type: USB

Audio: 4 x stereo speaker; 4 x Microphone

Peripherals: 2 x USB Type A

Keyboard, Mouse, and Monitor: 4 x SPDB15

Mouse: 1 x USB

Keyboard: 1 x USB

Monitor: 1 x HDB-15 Female (Std. VGA/SVGA)

Audio: 1 x stereo speaker; 1 x Microphone

Computer Connections: 4 Ports

Monitor Connections: 1 Port

Video Resolution: 2048 x 1536 (Max.)

PC Selection: Push Buttons/Hot Keys

AutoScan Interval: 5 -99 secs.

Temperature Operating: 4 - 40 C

Temperature Storage: -20 - 60 C

Output Voltage: 208 - 230 V AC

Protocols: Web, SNMP, Telnet

Form Factor: Rack-Mountable

Length: 8.6

Height: 2.6

Width: 3.7

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
