Overview

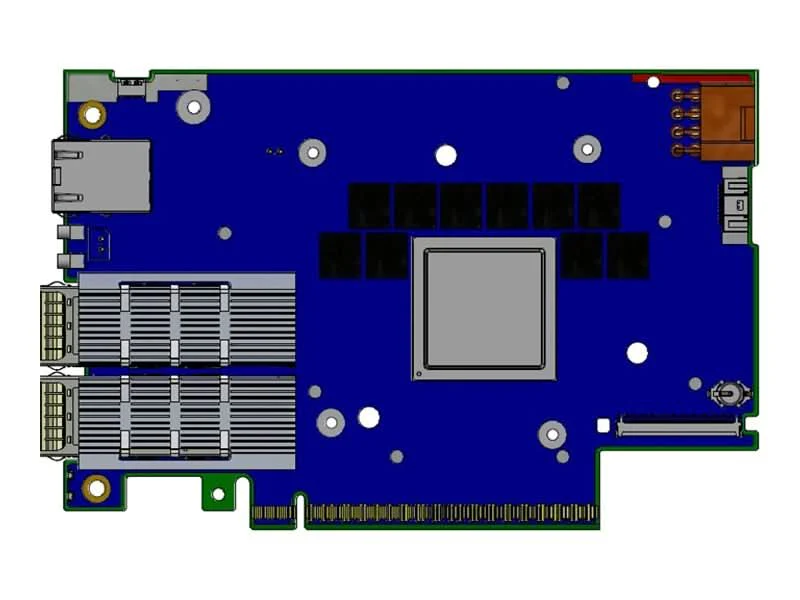

NVIDIA 900-9D3B6-00CC-EA0 BlueField-3 B3210E E FHHL DPU 100GBE Network Adapter

Specifications

Model Number: 900-9D3B6-00CC-EA0

Brand: NVIDIA

Alt Part Number(s): 900-9D3B6-00CC-EA0

Product Type: Network Adapter

Technical Description

Brand: NVIDIA

Model: 900-9D3B6-00CC-EA0

Form Factor: Plug-in card

Interface (Bus) Type: PCI Express 5.0 x16

PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1

Ports: 100 Gigabit QSFP112 x 2

Connectivity Technology: Wired

Cabling Type: Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBase-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX

Data Link Protocol: InfiniBand, 100 Gigabit Ethernet, 50 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet

Features: Crypto enabled, integrated BMC, 16-core CPU, FHHL, 40GB pSLC eMMC memory, built-in 128GB SSD, InfiniBand HDR100 Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand SDR Link support, XLPPI electrical interface, PCIe x16 extension option

RAM: 32 GB

Interfaces: 2 x 100Gb Ethernet / 100Gb InfiniBand - QSFP112

Included Accessories: Tall bracket

Compliant Standards: IBTA 1.5, CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS

Power: DC 12 V

Voltage Required: DC 12 V

Dimensions (WxDxH): 6.6 in x 4.4 in

Min Operating Temperature: 32 °F

Max Operating Temperature: 131 °F

Humidity Range Operating: 10 – 85% RH

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Network Interface Cards (NIC)

Synology E10G30-F2 Synology Dual-Port 10GbE SFP+ PCIe Network Adapter

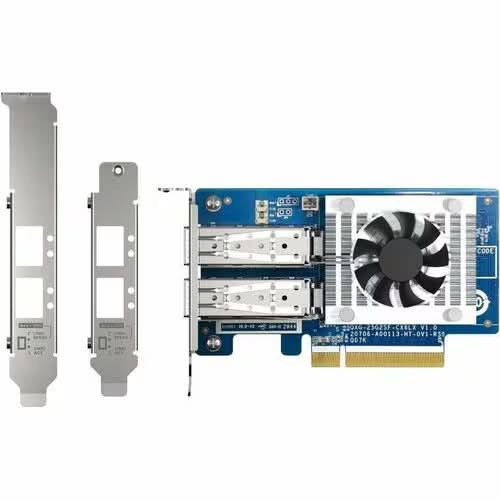

QNAP QXG-25G2SF-CX6 25Gigabit Ethernet Card PCI Express 4x8

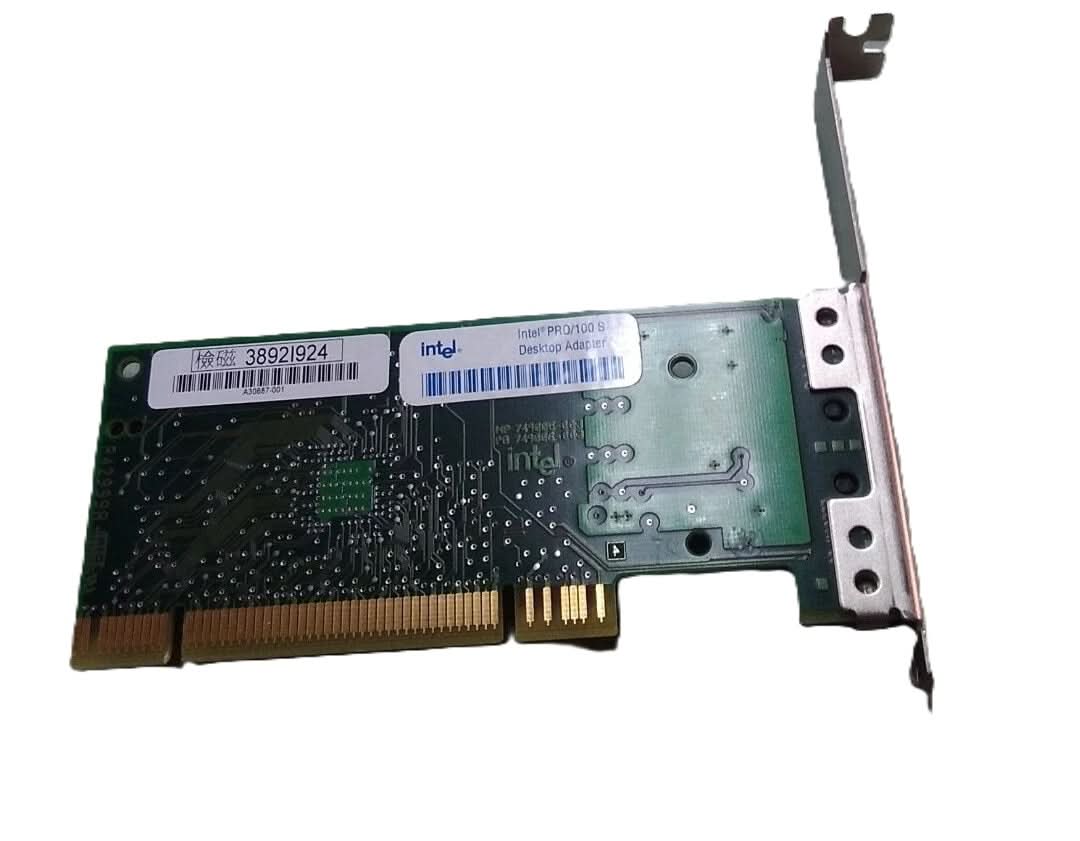

Intel 749005-003 10/100 Mbps Twisted-Pair Ethernet (RJ-45) Network Adapter

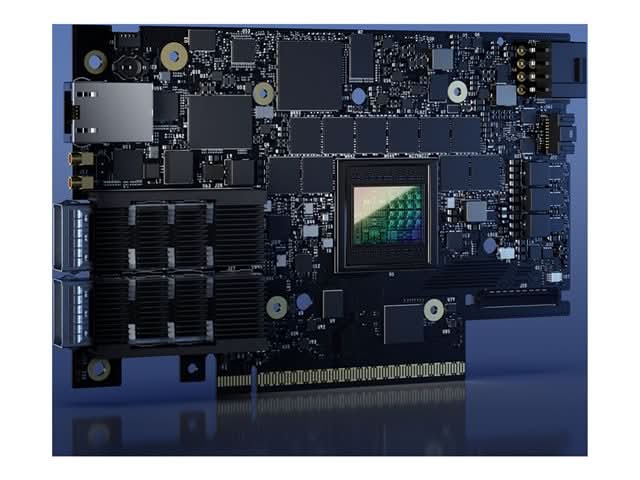

NVIDIA 900-9D3B6-00SV-AA0 BlueField-3 P B3220 200Gigabit Ethernet Card

NVIDIA 900-9D3B6-00CC-EA0 BlueField-3 B3210E E FHHL DPU 100GBE Network Adapter

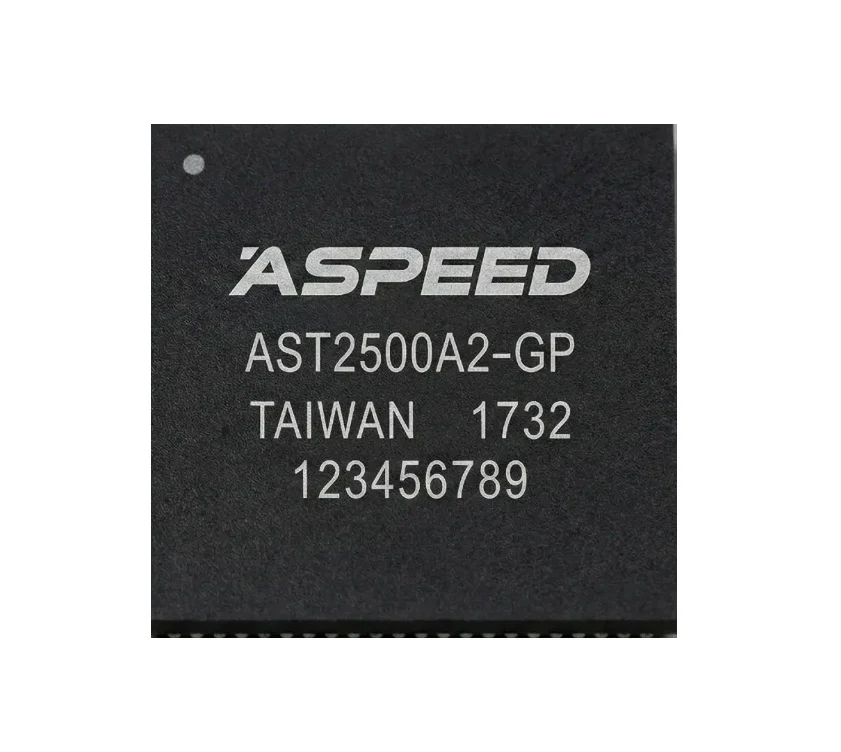

ASPEED AST2500A2-GP 1920 × 1200 PCIe Gen2 x1 Baseboard Management Controller
